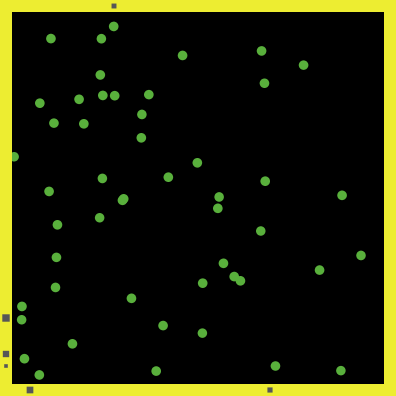

Connected Chemistry 8 Gas Particle Sandbox

globals
[
  tick-delta                        ;; how much we advance the tick counter this time through
  max-tick-delta                    ;; the largest tick-delta is allowed to be
  init-avg-speed init-avg-energy    ;; initial averages
  avg-speed avg-energy              ;; current average
  avg-energy-green
  avg-energy-orange
  avg-energy-purple
  particle-size
  toggle-red-state
  toggle-green-state
  min-particle-energy
  max-particle-energy
  particles-to-add
]

breed [ particles particle ]
breed [ walls wall ]
breed [ flashes flash ]
breed [ erasers eraser ]

breed [ arrowheads arrowhead ]

erasers-own [pressure?]

flashes-own [birthday]

particles-own
[
  speed mass energy          ;; particles info
  last-collision
  color-type
]

walls-own
[
  energy
  valve-1?
  valve-2?
  pressure?
  surface-energy
]

to setup
  ca reset-ticks
  set particle-size 1.0
  set max-tick-delta 0.02

  set particles-to-add 2

  set-default-shape flashes "square"
  set-default-shape walls "wall"
  set-default-shape erasers "eraser"
  set-default-shape arrowheads "default"

  set min-particle-energy 0
  set max-particle-energy 10000  ;;(.5 ) * ( max-dist-in-tick-delta  / max-tick-delta ) ^ 2

  create-erasers 1 [set hidden? true set pressure? true set size 3 set color white]

  make-box
  make-particles

  ask particles [ apply-speed-visualization]

  set init-avg-speed avg-speed
  set init-avg-energy avg-energy

  update-variables
  do-plotting
end

to go
  mouse-action
  if mouse-interaction = "none - let the particles interact"  [
  ask particles [ bounce ]
  ask particles [ move ]
  ask particles [ check-for-collision ]
  ask particles with [any? walls-here] [rewind-to-bounce]
  ask particles with [any? walls-here] [remove-from-walls]
]
  tick-advance tick-delta
  calculate-tick-delta

  ask flashes [apply-flash-visualization]
  ask particles [apply-speed-visualization]

  update-variables
  do-plotting
  display
end

to update-variables
  if any? particles [
    set avg-speed  mean [speed] of particles
    set avg-energy mean [energy] of particles
  ]

  if any? particles with [color-type = 55]
    [set avg-energy-green mean [energy] of particles with [color-type = 55]]
  if any? particles with [color-type = 25]
    [set avg-energy-orange mean [energy] of particles with [color-type = 25]]
 if any? particles with [color-type = 115]
      [set avg-energy-purple mean [energy] of particles with [color-type = 115]]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;WALL INTERACTION;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to toggle-red-wall
  ifelse toggle-red-state = "closed"
     [ask walls with [valve-1?] [set hidden? true] set toggle-red-state "open"]
     [ask walls with [valve-1?] [set hidden? false] set toggle-red-state "closed"]
end

to toggle-green-wall
  ifelse toggle-green-state = "closed"
     [ask walls with [valve-2?] [set hidden? true] set toggle-green-state "open"]
     [ask walls with [valve-2?] [set hidden? false] set toggle-green-state "closed"]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;GAS MOLECULES MOVEMENT;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to bounce  ;; particles procedure
  ;; get the coordinates of the patch we'll be on if we go forward 1
  let bounce-patch nobody
  let bounce-patches nobody
  let hit-angle 0
  let this-patch patch-here
  let new-px 0
  let new-py 0
  let visible-wall nobody

  set bounce-patch  min-one-of walls in-cone ((sqrt (2)) / 2) 180 with [myself != this-patch] [distance myself ]

  if bounce-patch != nobody [

    set new-px [pxcor] of bounce-patch
    set new-py [pycor] of bounce-patch
    set visible-wall walls-on bounce-patch

  if any? visible-wall with [not hidden?]  [
     set hit-angle towards bounce-patch
     ifelse (hit-angle <= 135 and hit-angle >= 45) or (hit-angle <= 315 and hit-angle >= 225)
       [set heading (- heading) ]
      [set heading (180 - heading) ]

       if show-wall-hits? [
    ask patch new-px new-py
    [ sprout 1 [
      set breed flashes
      set color gray - 2
      set birthday ticks
      ]
    ]
    ]
    ]]
end

to rewind-to-bounce  ;; particles procedure
  ;; attempts to deal with particle penetration by rewinding the particle path back to a point
  ;; where it is about to hit a wall
  ;; the particle path is reversed 49% of the previous tick-delta it made,
  ;; then particle collision with the wall is detected again.
  ;; and the particle bounces off the wall using the remaining 51% of the tick-delta.
  ;; this use of slightly more of the tick-delta for forward motion off the wall, helps
  ;; insure the particle doesn't get stuck inside the wall on the bounce.

  let bounce-patch nobody
  let bounce-patches nobody
  let hit-angle 0
  let this-patch nobody
  let new-px 0
  let new-py 0
  let visible-wall nobody

  bk (speed) * tick-delta * .49
  set this-patch  patch-here

  set bounce-patch  min-one-of walls in-cone ((sqrt (2)) / 2) 180 with [self != this-patch] [distance myself ]

  if bounce-patch != nobody [

    set new-px [pxcor] of bounce-patch
    set new-py [pycor] of bounce-patch
    set visible-wall walls-on bounce-patch


    if any? visible-wall with [not hidden?] [
      set hit-angle towards bounce-patch

      ifelse (hit-angle <= 135 and hit-angle >= 45) or (hit-angle <= 315 and hit-angle >= 225)
        [set heading (- heading) ]
        [set heading (180 - heading) ]

      if show-wall-hits? [
        ask patch new-px new-py
        [ sprout 1 [
            set breed flashes
            set color gray - 2
            set birthday ticks
          ]
        ]
      ]
    ]]
    fd (speed) * tick-delta * .51
end

to move  ;; particles procedure
  if patch-ahead (speed * tick-delta) != patch-here
    [ set last-collision nobody ]
  jump (speed * tick-delta)
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;GAS MOLECULES COLLISIONS;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;from GasLab

to calculate-tick-delta
  ;; tick-delta is calculated in such way that even the fastest
  ;; particles will jump at most 1 patch delta in a ticks tick. As
  ;; particles jump (speed * tick-delta) at every ticks tick, making
  ;; tick delta the inverse of the speed of the fastest particles
  ;; (1/max speed) assures that. Having each particles advance at most
   ; one patch-delta is necessary for it not to "jump over" a wall
   ; or another particles.
  ifelse any? particles with [speed > 0]
    [ set tick-delta min list (1 / (ceiling max [speed] of particles )) max-tick-delta ]
    [ set tick-delta max-tick-delta ]
end

to check-for-collision  ;; particles procedure
  ;; Here we impose a rule that collisions only take place when there
  ;; are exactly two particles per patch.  We do this because when the
  ;; student introduces new particles from the side, we want them to
  ;; form a uniform wavefront.
  ;;
  ;; Why do we want a uniform wavefront?  Because it is actually more
  ;; realistic.  (And also because the curriculum uses the uniform
  ;; wavefront to help teach the relationship between particles collisions,
  ;; wall hits, and pressure.)
  ;;
  ;; Why is it realistic to assume a uniform wavefront?  Because in reality,
  ;; whether a collision takes place would depend on the actual headings
  ;; of the particles, not merely on their proximity.  Since the particles
  ;; in the wavefront have identical speeds and near-identical headings,
  ;; in reality they would not collide.  So even though the two-particles
  ;; rule is not itself realistic, it produces a realistic result.  Also,
  ;; unless the number of particles is extremely large, it is very rare
  ;; for three or  particles to land on the same patch (for example,
  ;; with 400 particles it happens less than 1% of the time).  So imposing
  ;; this additional rule should have only a negligible effect on the
  ;; aggregate behavior of the system.
  ;;
  ;; Why does this rule produce a uniform wavefront?  The particles all
  ;; start out on the same patch, which means that without the only-two
  ;; rule, they would all start colliding with each other immediately,
  ;; resulting in much random variation of speeds and headings.  With
  ;; the only-two rule, they are prevented from colliding with each other
  ;; until they have spread out a lot.  (And in fact, if you observe
  ;; the wavefront closely, you will see that it is not completely smooth,
  ;; because  collisions eventually do start occurring when it thins out while fanning.)

  if count  other particles-here  in-radius 1 = 1
  [
    ;; the following conditions are imposed on collision candidates:
    ;;   1. they must have a lower who number than my own, because collision
    ;;      code is asymmetrical: it must always happen from the point of view
    ;;      of just one particles.
    ;;   2. they must not be the same particles that we last collided with on
    ;;      this patch, so that we have a chance to leave the patch after we've
    ;;      collided with someone.
    let candidate one-of other particles-here with
      [who < [who] of myself and myself != last-collision]
    ;; we also only collide if one of us has non-zero speed. It's useless
    ;; (and incorrect, actually) for two particles with zero speed to collide.
    if (candidate != nobody) and (speed > 0 or [speed] of candidate > 0)
    [
      collide-with candidate
      set last-collision candidate
      ask candidate [ set last-collision myself ]
    ]
  ]
end

;; implements a collision with another particles.
;;
;; THIS IS THE HEART OF THE particles SIMULATION, AND YOU ARE STRONGLY ADVISED
;; NOT TO CHANGE IT UNLESS YOU REALLY UNDERSTAND WHAT YOU'RE DOING!
;;
;; The two particles colliding are self and other-particles, and while the
;; collision is performed from the point of view of self, both particles are
;; modified to reflect its effects. This is somewhat complicated, so I'll
;; give a general outline here:
;;   1. Do initial setup, and determine the heading between particles centers
;;      (call it theta).
;;   2. Convert the representation of the velocity of each particles from
;;      speed/heading to a theta-based vector whose first component is the
;;      particle's speed along theta, and whose second component is the speed
;;      perpendicular to theta.
;;   3. Modify the velocity vectors to reflect the effects of the collision.
;;      This involves:
;;        a. computing the velocity of the center of mass of the whole system
;;           along direction theta
;;        b. updating the along-theta components of the two velocity vectors.
;;   4. Convert from the theta-based vector representation of velocity back to
;;      the usual speed/heading representation for each particles.
;;   5. Perform final cleanup and update derived quantities.

to collide-with [ other-particles ] ;; particles procedure
  ;;; PHASE 1: initial setup

  ;; for convenience, grab  quantities from other-particles
  let mass2 [mass] of other-particles
  let speed2 [speed] of other-particles
  let heading2 [heading] of other-particles

  ;; since particles are modeled as zero-size points, theta isn't meaningfully
  ;; defined. we can assign it randomly without affecting the model's outcome.
  let theta (random-float 360)



  ;;; PHASE 2: convert velocities to theta-based vector representation

  ;; now convert my velocity from speed/heading representation to components
  ;; along theta and perpendicular to theta
  let v1t (speed * cos (theta - heading))
  let v1l (speed * sin (theta - heading))

  ;; do the same for other-particles
  let v2t (speed2 * cos (theta - heading2))
  let v2l (speed2 * sin (theta - heading2))



  ;;; PHASE 3: manipulate vectors to implement collision

  ;; compute the velocity of the system's center of mass along theta
  let vcm (((mass * v1t) + (mass2 * v2t)) / (mass + mass2) )

  ;; now compute the new velocity for each particles along direction theta.
  ;; velocity perpendicular to theta is unaffected by a collision along theta,
  ;; so the next two lines actually implement the collision itself, in the
  ;; sense that the effects of the collision are exactly the following changes
  ;; in particles velocity.
  set v1t (2 * vcm - v1t)
  set v2t (2 * vcm - v2t)



  ;;; PHASE 4: convert back to normal speed/heading

  ;; now convert my velocity vector into my new speed and heading
  set speed sqrt ((v1t ^ 2) + (v1l ^ 2))
  set energy (0.5 * mass * speed ^ 2)
  ;; if the magnitude of the velocity vector is 0, atan is undefined. but
  ;; speed will be 0, so heading is irrelevant anyway. therefore, in that
  ;; case we'll just leave it unmodified.
  if v1l != 0 or v1t != 0
    [ set heading (theta - (atan v1l v1t)) ]

  ;; and do the same for other-particle
  ask other-particles [
    set speed sqrt ((v2t ^ 2) + (v2l ^ 2))
    set energy (0.5 * mass * (speed ^ 2))
    if v2l != 0 or v2t != 0
      [ set heading (theta - (atan v2l v2t)) ]
  ]
end



;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;  mouse interaction procedures
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to mouse-action
   let snap-xcor 0
   let snap-ycor 0
   let orig-xcor 0
   let orig-ycor 0
   let eraser-window-walls nobody
   let eraser-window-particles nobody
   ifelse mouse-down? [
      set orig-xcor mouse-xcor
      set orig-ycor mouse-ycor
      set snap-xcor round orig-xcor
      set snap-ycor round orig-ycor

    ask patches with [pxcor = snap-xcor and pycor = snap-ycor] [
      set eraser-window-walls walls-on neighbors
      set eraser-window-walls eraser-window-walls with [not pressure?]
      set eraser-window-particles particles-on neighbors

      if mouse-interaction = "draw basic wall" [
        ask walls-here [die]
        sprout 1 [
          set breed walls set color gray
          initialize-this-wall
        ]
      ]

      if mouse-interaction = "draw red removable wall"  [
        set toggle-red-state "open"
        toggle-red-wall
        ask walls-here [die]
        sprout 1 [
          set breed walls set color red
          initialize-this-wall set valve-1? true
        ]
      ]

      if mouse-interaction = "draw green removable wall" [
        set toggle-green-state "open"
        toggle-green-wall
        ask walls-here [die]
        sprout 1 [
          set breed walls set color 55
          initialize-this-wall set valve-2? true
        ]
      ]


      if mouse-interaction = "big eraser" [
        ask erasers [
          set hidden? false
          set shape "eraser"
          setxy orig-xcor orig-ycor
        ]
        ask eraser-window-walls [die]
        ask eraser-window-particles [die]
      ]


      if mouse-interaction = "add purple particles"
      or mouse-interaction = "add green particles"
      or mouse-interaction = "add orange particles" [

        ask erasers [
          set hidden? false
          set shape "spray paint"
          setxy orig-xcor orig-ycor
        ]
        sprout particles-to-add [
          set breed particles
          setup-particles
          jump random-float 2
          if mouse-interaction = "add purple particles" [set color-type 115 color-particle-and-link]
          if mouse-interaction = "add orange particles" [set color-type 25 color-particle-and-link]
          if mouse-interaction = "add green particles" [set color-type 55  color-particle-and-link]
          apply-speed-visualization
        ]
      ]



      if mouse-interaction = "paint particles purple"
      or mouse-interaction = "paint particles orange"
      or mouse-interaction = "paint particles green" [

        ask erasers [
          set hidden? false
          set shape "spray paint"
          setxy orig-xcor orig-ycor
        ]
        ask eraser-window-particles [
          if mouse-interaction = "paint particles purple" [set color-type 115 color-particle-and-link]
          if mouse-interaction = "paint particles orange" [set color-type 25 color-particle-and-link]
          if mouse-interaction = "paint particles green" [set  color-type 55 color-particle-and-link]
          apply-speed-visualization
        ]
      ]


      if mouse-interaction = "speed up particles"  [

        ask erasers [
          set hidden? false
          set shape "spray paint"
          setxy orig-xcor orig-ycor
        ]
        ask eraser-window-particles [
          set energy (energy * 1.1)
          set energy limited-particle-energy
          set speed speed-from-energy
          apply-speed-visualization
        ]
      ]


      if mouse-interaction = "slow down particles" [

        ask erasers [
          set hidden? false
          set shape "spray paint"
          setxy orig-xcor orig-ycor
        ]
        ask eraser-window-particles [
          set energy (energy / 1.1)
          set energy limited-particle-energy
          set speed speed-from-energy
          apply-speed-visualization
        ]
      ]

    ]
    ask particles with [any? walls-here] [remove-from-walls] ;; deal with any walls drawn on top of particles
  ]
  [ask erasers [set hidden? true]]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; particle speed and flash visualization procedures
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to apply-flash-visualization
  set size (size * .95)
  if (ticks - birthday > 0.4)  [ die ]
end

to apply-speed-visualization
  if visualize-speed? = "arrows" [ scale-arrowheads]
  if visualize-speed? = "different shades" [ recolorshade ]
  if visualize-speed? = "none" [ recolornone ]
end

to color-particle-and-link

  let this-link my-out-links
  let this-color-type color-type
  set color this-color-type
  ask this-link [set color this-color-type]
end

to scale-arrowheads
  let this-xcor xcor
  let this-ycor ycor
  let this-speed speed
  let this-heading heading
  let this-arrowhead out-link-neighbors
  let this-link my-out-links
  ask this-link [set hidden? false]
  ask this-arrowhead [
    set xcor this-xcor
    set ycor this-ycor
    set heading this-heading
    fd .5 + this-speed / 3
  ]
end

to recolorshade
  let this-link my-out-links
  ask this-link [set hidden? true]
  ifelse speed < 27
  [ set color color-type - 3 + speed / 3 ]
  [ set color color-type + 4.999 ]
end

to recolornone
  let this-link my-out-links
  ask this-link [set hidden? true]
  set color 55
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;  initialization procedures
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to make-box
  ask patches with [(pycor = min-pycor or pycor = max-pycor or pxcor = min-pxcor or pxcor = max-pxcor) ]
    [ sprout 1 [set breed walls set color yellow initialize-this-wall set pressure? true] ]
end

to initialize-this-wall
  set valve-1? false
  set valve-2? false
  set pressure? false
end

to make-particles
  create-particles initial-#-particles
  [
    setup-particles
    random-position
  ]
end

to setup-particles  ;; particles procedure
  set shape "circle"
   set size particle-size
  set energy initial-gas-temperature
  set color-type 115
  set color color-type
  set mass (10)  ;; atomic masses of oxygen atoms
  hatch 1 [set breed arrowheads set hidden? true create-link-from myself [tie]]
  set speed speed-from-energy
  set last-collision nobody
end


;; Place particles at random, but they must not be placed on top of wall atoms.
;; This procedure takes into account the fact that wall molecules could have two possible arrangements,
;; i.e. high-surface area ot low-surface area.

to random-position ;; particles procedure
  let open-patches nobody
  let open-patch nobody
  set open-patches patches with [not any? turtles-here and pxcor != max-pxcor and pxcor != min-pxcor and pycor != min-pycor and pycor != max-pycor]
  set open-patch one-of open-patches

  ;; Reuven added the following "if" so that we can get through setup without a runtime error.
  if open-patch = nobody [
    user-message "No open patches found.  Exiting."
    stop
  ]

  setxy ([pxcor] of open-patch) ([pycor] of open-patch)
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; wall penetration error handling procedure
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; if particles actually end up within the wall
;;

to remove-from-walls
  let this-wall walls-here with [not hidden?]

  if count this-wall != 0 [

    let available-patches patches with [not any? walls-here]
    let closest-patch nobody
    if (any? available-patches) [
      set closest-patch min-one-of available-patches [distance myself]
      set heading towards closest-patch
      setxy ([pxcor] of closest-patch)  ([pycor] of closest-patch)

    ]
  ]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;GRAPHS;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to do-plotting

  set-current-plot "Temperature of gases"

  if any? particles with [color-type = 55]
    [
    set-current-plot-pen "green"
    plotxy ticks avg-energy-green
  ]
  if any? particles with [color-type = 25]
  [
    set-current-plot-pen "orange"
    plotxy ticks avg-energy-orange
  ]
  if any? particles with [color-type = 115]
  [
    set-current-plot-pen "purple"
    plotxy ticks avg-energy-purple
  ]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;REPORTERS;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to-report speed-from-energy
   report sqrt (2 * energy / mass)
end

to-report energy-from-speed
   report (mass * speed * speed / 2)
end

to-report limited-particle-energy
  let limited-energy energy
  if limited-energy > max-particle-energy [set limited-energy max-particle-energy]
  if limited-energy < min-particle-energy [set limited-energy min-particle-energy]
  report limited-energy
end


; Copyright 2006 Uri Wilensky.
; See Info tab for full copyright and license.
