Herbivory and Plant Interspecific Competition

1 collaborator

lin xiang (Author)

WHAT IS IT?

This model simulates the plant interspecific competition and herbivory.

HOW IT WORKS

Agents:

There are four types of agents: plant1s, plant2s, rabbits, and mice.

Model Rules:

There are 168 patches (light blue squares) in the model. The nutrients in each patch may support and only support either a plant1 or a plant2.
Rabbits only feed on plant1s; mice only feed on plant2s.
Rabbits and mice lose energy when they move around to search for food. They die when running out of energy.
Rabbits and mice gain energy when they find food and will produce offspring rabbit/mouse when they accumulate enough energy.
Each unconsumed plants produce a certain number of seeds every year, determined by the slides “plant1-seeds” and “plant2-seeds”.
The seeds fall into the empty patches nearby and grow into new plants next year.

HOW TO USE IT

Use sliders number-of-plant1s and other similar slider to set up the number of organisms. Click Start/Reset to confirm the settings.
Put a number in years to define when the model ends.
Click Run/Pause to run or pause the model. Good for gaining an overview and a long-term result.
Click Run a year to run the model for a hypothetical year. Good for systematically collecting data.
Use plot-plant1s? and other similar switches to decide whether or not to plot certain organisms in the real-time plot. Good for providing a clear visualization.
Use plant1-seeds and plant2-seeds to define how many seeds each plant1/plant2 produces every year.

THINGS TO TRY

What population patterns emerge when both rabbits and plant1s are present in the model?
What population patterns emerge when both mice and plant2s are present in the model?
What population patterns emerge when both plant1s and plant2s are present in the model?
How do the number of seeds affect the plant interactions?
What population patterns indicate a herbivory interaction? Why?
What population patterns indicate a competition interaction? Why?

RELATED MODELS

Find more community interaction models at http://3dsciencemodeling.com

CREDITS AND REFERENCES

Dr. Lin Xiang (lin.xiang@uky.edu) created this module at the University of Kentucky in 2022. If you mention this model in a publication, we ask that you include the citations below.

Xiang, L. (2022). Herbivory and Plant Interspecific Competition. Department of STEM Education, University of Kentucky, Lexington, KY.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

; Coded in 2022 by Lin Xiang; Last revised in 2022 by Lin Xiang (lxiang75@gmail.com; lin.xiang@uky.edu)
;;
;; If you mention this model in a publication, we ask that you include the citations below.
;;
;; Xiang, L. (2022). Herbivory and Plant Interspecific Competition. Department of STEM Education, University of Kentucky, Lexington, KY.
;;



breed [plant1s plant1]
breed [plant2s plant2]
breed [animal1s animal1 ]
breed [animal2s animal2 ]
breed [legends legend]

plant1s-own [ num-seed-1 erg-0]
plant2s-own [ num-seed-2 erg-00]
animal1s-own [erg-1 life-1]
animal2s-own [erg-2 life-2]

patches-own []

Globals [
  running-avg-list1  running-avg-list2
  running-avg-lista1  running-avg-lista2

  mean-total-1 mean-total-2
  mean-total-a1 mean-total-a2
]

to-report empty-patches   ;find empty patches for growing a plant
  report patches with [pcolor >= 79 and pcolor <= 79.5 and not any? plant1s-here and not any? plant2s-here]
end

to setup
  clear-all

  setup-patches
  setup-legends
  add-plants1
  add-plants2
  add-rabbits
  add-mice

  set running-avg-list1 []
  set running-avg-list2 []
  set running-avg-lista1 []
  set running-avg-lista2 []

  reset-ticks
end

to setup-patches
  ask patches [set pcolor 79 + random-float 0.5]
  ask patches with [ pycor = max-pycor or pycor < 2] [set pcolor white]
end

to add-plants1
ask up-to-n-of number-of-plant1s empty-patches
    [sprout-plant1s 1
    [set color 135
    set shape "weed-1"
    set size 0.6 + random-float 0.4
    set erg-0 10]]
end

to add-plants2
ask up-to-n-of number-of-plant2s empty-patches
    [sprout-plant2s 1
    [set shape "plant-1"
    set size 0.6 + random-float 0.4
    set erg-00 10]]
end

to add-rabbits
 create-animal1s number-of-rabbits
 [set color 36.5
  set size 1
  set erg-1 5 + random 10
  set shape "rabbit-1"
  setxy 1 + random (max-pxcor - 1) 2 + random (max-pycor - 2)
 ]
end

to add-mice
create-animal2s number-of-mice
 [set color 34.5
  set size 0.65
  set erg-2 5 + random 10
  set shape "mouse"
  setxy 1 + random (max-pxcor - 1) 2 + random (max-pycor - 2)
 ]
end
;;;;;;;;;;;;;;;;;;;;;
;;   GO PROCEDURE  ;;
;;;;;;;;;;;;;;;;;;;;;

to go
 every 0.1[
  if ticks >= Years [stop]
  move
  feeding
  plant-reproduction
  death
  find-running-avg
    tick
]
end

to move
  if any? animal1s [ask animal1s
                     [ifelse life-1 >= 14 [die] [set life-1 life-1 + 1]  ;set animals' life-span
                      right random 360
                      if [pcolor] of patch-at dx dy <= 79.5 and [pcolor] of patch-at dx dy >= 79 [fd 1 if ycor < 2 [set ycor 2] set erg-1 erg-1 - 1] ;stay within the blue area
                      if erg-1 <= 0 [die]]]  ;die when no energy

  if any? animal2s [ask animal2s
                      [ifelse life-2 >= 14 [die] [set life-2 life-2 + 1]  ;set animals' life-span
                       right random 360
      if [pcolor] of patch-at dx dy <= 79.5 and [pcolor] of patch-at dx dy >= 79 [fd 1 if ycor < 2 [set ycor 2] set erg-2 erg-2 - 1] ;stay within the blue area
                       if erg-2 <= 0 [die]]]  ;die when no energy
end

to feeding
  (ifelse
    any? animal1s and not any? animal2s   ;when only animal1
    [feeding-1]

    any? animal2s and not any? animal1s   ;when only animal2
    [feeding-2]

    any? animal1s and any? animal2s       ;when both animals,
    [ifelse random 2 = 0                  ;randomize the feeding
       [feeding-1 feeding-2]
       [feeding-2 feeding-1]]
    )
end

to feeding-1   ;feed and reproduce
 ask animal1s [
    if any? plant1s-here [
      let food one-of plant1s-here
      set erg-1 erg-1 + [erg-0] of food
      ask food [die]]]

  ask animal1s [
    if erg-1 > 20 [if random 100 < 20
      [hatch 1 [set erg-1 5 set life-1 0]
        set erg-1 erg-1 - 10]]]
end

to feeding-2    ;feed and reproduce
 ask animal2s [
    if any? plant2s-here [
      let food one-of plant2s-here
      set erg-2 erg-2 + [erg-00] of food
      ask food [die]]]

   ask animal2s [
    if erg-2 > 20 [if random 100 < 20
      [hatch 1 [set erg-2 5 set life-2 0]
      set erg-2 erg-2 - 10]]]
end

to plant-reproduction
  (ifelse
    any? plant1s and not any? plant2s
    [reproduce-1]

    any? plant2s and not any? plant1s
    [reproduce-2]

    any? plant1s and any? plant2s
    [ ifelse random 2 = 0
      [reproduce-1 reproduce-2]
      [reproduce-2 reproduce-1]]
    )
end

to reproduce-1
  if any? plant1s
    [ask plant1s
       [set num-seed-1 plant1-seeds ;- 1
        ask up-to-n-of num-seed-1 neighbors with [pcolor <= 79.5 and pcolor >= 79 and not any? plant1s-here and not any? plant2s-here]
          [sprout-plant1s 1
            [set shape "weed-1"
             set size 0.6 + random-float 0.4
             set erg-0 10]]

        ]]
end

to reproduce-2
  if any? plant2s
    [ask plant2s
       [set num-seed-2 plant2-seeds ;- 1
        ask up-to-n-of num-seed-2 neighbors with [pcolor <= 79.5 and pcolor >= 79 and not any? plant1s-here and not any? plant2s-here]
           [sprout-plant2s 1
            [set shape "plant-1"
             set size 0.6 + random-float 0.4
             set erg-00 10]]
         ]]
end

to death
   ask plant1s
  [if random 100 < 40 [die]]    ;a mortality of 35-45%  is needed for competition pattern

  ask plant2s
  [if random 100 < 40 [die]]
end

to find-running-avg  ;find the 5-year running averages
   (ifelse
    ticks < 10
     [set running-avg-list1 lput (count plant1s) running-avg-list1 set mean-total-1 mean running-avg-list1
      set running-avg-list2 lput (count plant2s) running-avg-list2 set mean-total-2 mean running-avg-list2

      set running-avg-lista1 lput (count animal1s) running-avg-lista1 set mean-total-a1 mean running-avg-lista1
      set running-avg-lista2 lput (count animal2s) running-avg-lista2 set mean-total-a2 mean running-avg-lista2]

     [set running-avg-list1 lput count plant1s running-avg-list1 set running-avg-list1 remove-item 0 running-avg-list1 set mean-total-1 mean running-avg-list1
      set running-avg-list2 lput count plant2s running-avg-list2 set running-avg-list2 remove-item 0 running-avg-list2 set mean-total-2 mean running-avg-list2

      set running-avg-lista1 lput count animal1s running-avg-lista1 set running-avg-lista1 remove-item 0 running-avg-lista1 set mean-total-a1 mean running-avg-lista1
      set running-avg-lista2 lput count animal2s running-avg-lista2 set running-avg-lista2 remove-item 0 running-avg-lista2 set mean-total-a2 mean running-avg-lista2])
end

to setup-legends
  create-legends 9

  ask legend 0
  [set shape "weed-11"
    set size 1
    setxy 1.5 0.75]

  ask legend 1
  [set shape "rabbit-1"
    set color 36.5
    set size 1.25
    setxy 3.5 0.75]

  ask legend 2
  [set shape "plant-11"
    set size 1
    setxy 9.5 0.75]

  ask legend 3
  [set shape "mouse"
    set color 34.5
    set size 1
    setxy 7.5 0.75]

  ask legend 4
   [set shape "arrow-1"
    set color 136
    set size 1
    set heading 80
    setxy 2.5 0.75]

  ask legend 5
  [set shape "blank"
    set color 136
    set size 1.5
    set label "Rabbits feed on plant1s."
    set label-color 0
    set heading 75
    setxy 3.7 0.5]

ask legend 6
   [set shape "arrow-1"
    set color 136
    set size 1
    set heading -80
    setxy 8.5 0.75]

  ask legend 7
  [set shape "blank"
    set color 136
    set size 1.5
    set label "Mice feed on plant2s."
    set label-color 0
    set heading 75
    setxy 9.5 0.5]

  ask legend 8
  [set shape "line"
    set color 8
    set size 13
    set heading 90
    setxy 5.5 1.5]
end

There are 7 versions of this model.

Uploaded by	When	Description	Download
lin xiang	over 2 years ago	Update the plotting	Download this version
lin xiang	over 2 years ago	Update the plotting	Download this version
lin xiang	over 3 years ago	adjust the interface	Download this version
lin xiang	over 3 years ago	adjust the interface	Download this version
lin xiang	over 3 years ago	adjust the interface	Download this version
lin xiang	over 3 years ago	adjust the interface	Download this version
lin xiang	over 3 years ago	Initial upload	Download this version

Attached files

File	Type	Description	Last updated

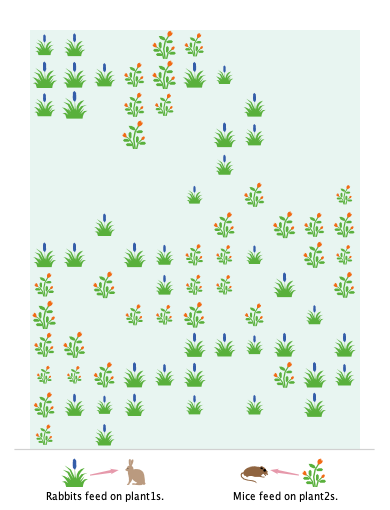

Herbivory and Plant Interspecific Competition.png	preview	Preview for 'Herbivory and Plant Interspecific Competition'	over 3 years ago, by lin xiang	Download
