Reinforcement Learning for the Space Turtle

extensions [csv]

globals [
  curr-patch
  start-patch
  status
  move-dir

  px
  py
  pz

  model-policy ;; reinforcement learning model policy
  selected-move ;; a particular move selected from the policy
]

to setup
  clear-all
  file-close-all

  crt-world
  draw-cube
  draw-axes
  crt-turtle

  set status "Playing"

  set-start-patch
  set selected-move []
  set model-policy []
  set move-dir 0

  set px 0
  set py 0
  set pz 0

  orbit-right 5
  orbit-down 90

  reset-ticks
end

to draw-axes
  create-turtles 1 [ set shape "line"
          set heading 90
          set color red
          set size world-width
          stamp
          die ]
  create-turtles 1 [ set shape "line"
          set color orange
          set heading 0
          set size world-height
          stamp
          die ]
  create-turtles 1 [ set shape "line"
          set pitch 90
          set color blue
          set size world-depth
          stamp
          die ]
  ask patch max-pxcor 0 0 [ set plabel "x-axis"
                            set plabel-color red]

  ask patch 0 max-pycor 0 [ set plabel "y-axis"
                            set plabel-color orange]

  ask patch 0 0 max-pzcor [ set plabel "z-axis"
                            set plabel-color blue]
end

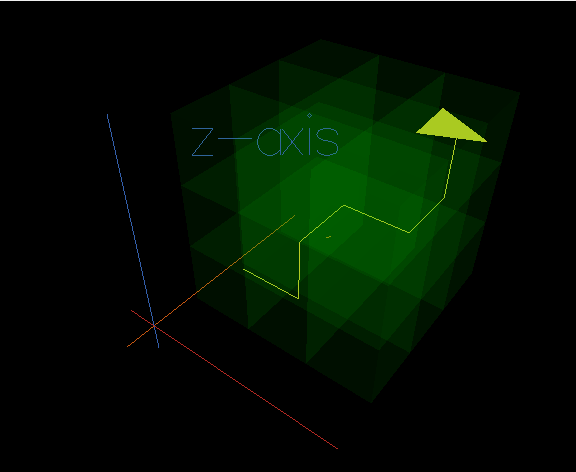

to draw-cube
  ask patches
    [
      if (pxcor >= 1 and pxcor <= max-pxcor and
          pycor >= 1 and pycor <= max-pycor and
          pzcor >= 1 and pzcor <= max-pzcor)
        [ set pcolor [0 255 0 20] ]
  ]
end

to crt-turtle
  crt 1 [
      set color yellow
      setxyz 1 1 1
      set heading 90
      set pitch 0
      set roll 0
  ]
end

to crt-world

  resize-world 0 3 0 3 0 3
end

to go
  ifelse(status = "Win")
    [stop]
    [ play-model
    tick]
end

to set-start-patch ;; the patch to start with; coordinates are random
  set px  one-of [1 2 3]
  set py  one-of [1 2 3]
  set pz  one-of [1 2 3]
  set start-patch patch px  py  pz

  set px 0
  set py 0
  set pz 0
end

to move-to-start
  ask turtles [
  move-to start-patch
  ]
end

to play-model ; the procedure of moving the turtle according to the RL model
  ask turtles [
    set curr-patch patch-here

;; loading model policy from a separate .csv file, located in the same folder
    set model-policy csv:from-file "C:/Users/Victor/Desktop/RL/NetLogo_models/Final_RL_S_turtle/Policy_m.csv" ;; "~/path to .csv file/Policy_m.csv"

;; iterating over the model policy and selecting the optimal move
    foreach model-policy [ i -> if xcor = read-from-string item 6 item 0 i and
                                  ycor = read-from-string item 8 item 0 i and
                                  zcor = read-from-string item 10 item 0 i
;; selected-move is the particular move selected out of the policy
                                  [set selected-move lput i selected-move]
                         ]
    pen-down

    if item 1 item 0 selected-move = "forward"
       [ set move-dir "forward"
         fd 1]

    if item 1 item 0 selected-move = "backward"
       [ set move-dir "backward"
         bk 1]

    if item 1 item 0 selected-move = "right"
       [ set move-dir "right"
         set heading 180
         fd 1
         set heading 90]

    if item 1 item 0 selected-move = "left"
       [ set move-dir "left"
         set heading 0
         fd 1
         set heading 90]

    if item 1 item 0 selected-move = "up"
       [ set move-dir "up"
         set pitch 90
         fd 1
         set pitch 0]

     if item 1 item 0 selected-move = "down"
        [ set move-dir "down"
          set pitch -90
          fd 1
          set pitch 0]

    set selected-move []

    if (patch-here = patch 3 3 3)
      [set status "Win"
       stop]

    ]
end
