WHTAT IS IT

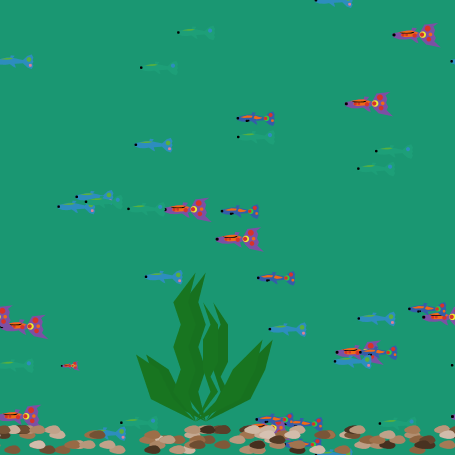

In this model you will investigate guppy coloration patterns in various habitats and infer the underlying selection mechanisms.

CREDITS AND REFERENCES

This model is made by Dr. Lin Xiang at the University of Kentucky. If you mention this model in a publication, we ask that you include the citations below.

Xiang, L. (2015). Selection in Guppies. Department of STEM Education, University of Kentucky, Lexington, KY.

CC BY-NC-SA 4.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 License. To view a copy of this license, visit https://creativecommons.org/licenses/by-nc-sa/4.0/.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [ ]

turtles-own [age]

breed [guppies guppy]
breed [weeds weed]
breed [pebbles pebble]
breed [predators predator]

to-report brightest-guppy
  report max [color] of guppies-here
end

;;;;;;;;;;;;;;;;;;;;;;;;

to setup
 set-default-shape weeds "weed"
 set-default-shape pebbles "pebble"
 set-default-shape predators "predator"
 ca
  setup-bk
 setup-weed random 3
 setup-pebble 100
 set-guppies
 reset-ticks
end

to set-guppies
  set-brightest-guppies
  set-bright-guppies
  set-drab-guppies
  set-drabbest-guppies
end

to set-brightest-guppies
 create-guppies Initial-number-of-fish * ( 1 - bright-drab-ratio) * 0.5
  [set size 10
   set color 10.5 + random-float 2.25
   set-shape
   set age random 6
   set-position
    if any? other guppies-on patch-here [set-position] ]
end

to set-bright-guppies
  create-guppies Initial-number-of-fish * ( 1 - bright-drab-ratio) * 0.5
  [set size 8
   set color 12.75 + random-float 2.25
   set-shape
   set age random 6
   set-position
    if any? other guppies-on patch-here [set-position] ]
end

to set-drab-guppies
  create-guppies Initial-number-of-fish * bright-drab-ratio * 0.5
  [set size 8
   set color 15 + random-float 2.25
   set-shape
   set age random 6
   set-position
    if any? other guppies-on patch-here [set-position] ]
end

to set-drabbest-guppies
 create-guppies Initial-number-of-fish * bright-drab-ratio * 0.5
  [set size 8
   set color 17.25 + random-float 2
   set-shape
   set age random 6
   set-position
    if any? other guppies-on patch-here [set-position] ]
end

to set-shape
   if color >= 17.25 [set shape "guppy-drabbest"]
   if color < 17.25 and color >=  15 [set shape "guppy-drab"]
   if color < 15 and color >=  12.75 [set shape "guppy-bright"]
   if color < 12.75 [set shape "guppy-brightest"]
end

to set-position
  setxy random-xcor random-ycor
end

to setup-pebble [number]
create-pebbles number
 [set color 32 + random-float 6
    set size 4
    setxy min-pxcor + random (abs min-pxcor * 2) min-pycor + random 5]
end

to setup-weed [number]
 create-weeds 1 + number
  [set color 61.5 + random-float 2
    if color = pcolor [ifelse random 2 = 0 [set color pcolor + 0.5][set color pcolor - 0.5]]
    set size 30
    setxy random-xcor  min-pxcor + 20 + random 3]
end

to setup-bk
  ask patches
  [set pcolor 74.75]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to go

 if ticks >= months * 10 [user-message "The trial has reached the defined time. Click 'setup' to restart the experiment or incease the time to extend the trial." stop]
 if count guppies = 0 [user-message "All guppies die." stop]

    swim
  grow
    Habitation
    death
    over-population

   tick
end

to grow
  ask guppies
  [set age age + 0.5
  if size < 8 [set size size + 0.5]]
end

to swim
  ask guppies [ifelse any? other guppies-on patch-ahead 1 [rt random 360]
                            [ifelse random 10 = 0 [rt random 30 lt random 30 ifelse any? other guppies-on patch-ahead 1 [swim][fd 2 ]]
                                                    [fd 0.5 ]]]
end

to habitation
  if Habitat = "Habitat 1"
  [
    survive-H
    reproduce
    ]

  if Habitat = "Habitat 2"
  [
    reproduce]

  if Habitat = "Habitat 3"
  [
    survive-L
    reproduce
    ]
end

to survive-H
  ask guppies [
    if random-float 2750 < abs (color - 19.5) ^ 2 [die]
  ]
end

to survive-L
  ask guppies [
    if random-float 500 < abs (color - 19.5) ^ 2 [die]
  ]
end

to preying
  rt random 30 lt random 30 fd 1
  if random 500 = 0[
  let prey one-of guppies with-max [color]
  if prey != nobody
   [ask prey [die]]]
end

to reproduce
 ask guppies with [age >= 4 and size >=  8]
 [ if color >= 17.25 [if random 60 < abs (color - 20) [hatch-baby 1]]
   if color < 17.25 and color >=  15 [if random 72 < abs (color - 20) [hatch-baby 1]]
   if color < 15 and color >=  12.75 [if random 90 < abs (color - 20) [hatch-baby 1]]
   if color < 12.75 [if random 100 < abs (color - 20) [hatch-baby 1]]
 ]
end

to hatch-baby [number]
  hatch-guppies number [
                   set age 0
                   set size 4
                   set-position
    ifelse random-float 100 < 5
        [ifelse random 2 = 0 [set color color + random-float mutate-range][set color color - random-float mutate-range]]
                                [set color color]
                                if color > 19.5 [set color 19]
                                if color < 10.5 [set color 11]
                                set-shape
  ]
end

to death
  ask guppies [if age >= 20 [die]]
end

to over-population
ask guppies[  if count guppies > Habitat_Capacity [if random 2 = 0 [die]]]
end
