Flame

turtles-own [
  age
]

patches-own [
  pheading
]

globals [
  top
  bottom
  last-opacity
  last-eddies
  last-fuel
  last-spread
  last-lift
]

to startup
  setup
end

to setup
  clear-all
  set-default-shape turtles "circle"
  set top    patches with [ pycor = max-pycor ] ; flames end at top
  set bottom patches with [ pycor = min-pycor ] ; flames start at bottom
  reset-ticks
  ; hint

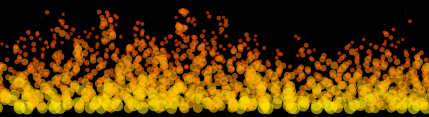

  output-print "A particle model "
  output-print "of fire.\n"
  output-print "Press 'go' to get "
  output-print "started.\n"
  output-print "Then adjust the "
  output-print "sliders to change "
  output-print "the properties "
  output-print "of the flame.\n"
  ; remember slider settings
  set last-opacity opacity
  set last-eddies  eddies
  set last-fuel    fuel
  set last-spread  spread
  set last-lift    lift
end

to go
  ; any sliders changed?  If so, give hint
  set last-opacity hint "Opacity of flame"    opacity last-opacity
  set last-eddies  hint "Curvature of eddies" eddies  last-eddies
  set last-fuel    hint "Rate of fuel supply" fuel    last-fuel
  set last-spread  hint "Smoothness of wind"  spread  last-spread
  set last-lift    hint "Speed of rise"       lift    last-lift
  ; add fuel to fire
  ask n-of fuel bottom [ add-fuel ]
  ; flames end at top
  ask top [ ask turtles-here [ die ] ]
  ; eddies are a property of location (patch) and change over time
  ask patches [
    set pheading pheading + plus-minus * 10
    if pheading >     eddies   [ set pheading     eddies   ]
    if pheading < ( - eddies ) [ set pheading ( - eddies ) ]
  ]
  ; blend eddies to make more continuous
  diffuse pheading spread
  ask turtles [
    ; add a bit of noise to heading
    set heading pheading + plus-minus * 10
    ; flame rises
    forward lift
    ; flame shrinks and goes red as it ages
    ; except if in a hotspot with lots of fire around.
    ; I don't know how realistic this is but it makes it look more
    ; realistic by creating "tongues" of flame.
    set age age + max sentence 0 ( 10 - count other turtles-here )
    if age < 0 [ set age 0 ]
    if age > 255 [ die ]
    set color ( sentence 255 ( 255 - age ) 0 opacity )
    set size 1 - age / 255
    ;set color scale-color
  ]
  tick
end

to add-fuel
  sprout 1 [
    ; include some variation in starting "age" of flame particle
    set age random 64
    set color ( sentence 255 ( 255 - age ) 0 opacity )
    ; let flames emerge from anywhere along the bottom
    set xcor xcor + random-float 1
  ]
end

to-report plus-minus
  ; reports +1 or -1
  report 2 * random 2 - 1
end

to-report hint [ def new old ]
  ;
  if new != old [
    output-print def
    output-print ( word "changed by " ( new - old ) ".\n" )
  ]
  report new
end
