Farmer Social Psychology (iEMSs2012)

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;                                                                              ;;
;;                Agricultural Identity Change, February 2012                   ;;
;;                                                                              ;;
;;  Code licenced by James D.A. Millington (http://www.landscapemodelling.net)  ;;
;;  under a Creative Commons Attribution-Noncommercial-Share Alike 3.0          ;;
;;  Unported License (see http://creativecommons.org/licenses/by-nc-sa/3.0/)    ;;
;;                                                                              ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;



;;This model version accompanies and is described in Millington [2012] Using social psychology theory for modelling farmer decision-making,
;;International Environmental Modelling and Software Society (iEMSs) 2012 International Congress on Environmental Modelling and Software
;;Managing Resources of a Limited Planet, Sixth Biennial Meeting, Leipzig, Germany, R. Seppelt, A.A. Voinov, S. Lange,  D. Bankamp  (Eds.)
;;http://www.iemss.org/society/index.php/iemss-2012-proceedings
;;That document also contains an ODD description of the model.




globals
[
  turtle-output-filename         ;filename for turtle-data output file
  values-scenario-filename       ;filename for values scenario file
  behaviours-scenario-filename   ;filename for behaviours scenario file
  interface-filename             ;filename to output screenshot of interface to

  scenario-values-provided       ;number of timesteps (ticks) values have been provided for (so simulation stops if necessary)
  values-scenario-list           ;list of lists - for each timestep (ticks) a list of values for P D and C

  line-drawer                    ;a single use line-painter turtle for drawing boundary of 'farm'

  production-meeting-points      ;patch where turtles move after adding a P behaviour - will potentially meet new contacts here
  conservation-meeting-point     ;patch where turtles move after adding a C behaviour - will potentially meet new contacts here
  diversification-meeting-point  ;patch where turtles move after adding a D behaviour - will potentially meet new contacts here

  added-conservation             ;turtle-set containing turtles to sent to conservation-meeting-point
  added-production               ;turtle-set containing turtles to sent to production-meeting-point
  added-diversification          ;turtle-set containing turtles to sent to diversification-meeting-point

  network-density                ;density of social network
  mean-cluster-coefficient       ;mean cluster coefficients of all turtles
]

turtles-own
[
  id-standard              ;list containing 4 values (salience of each identity)
                           ;position 0 = id P (producer)
                           ;position 1 = if D (diversifier)
                           ;position 2 = id C (conservationsist)
                           ;position 3 = id A (agri-business)

  id-error-behaviour       ;difference between current id-expressed and id-standard - cumulative difference between salience for each identity
  last-id-error-behaviour  ;id-error-behaviour in previous tick

  id-error-social          ;difference between current my id-standard and my social network's mean expressed behaviour - cumulative difference between salience for each identity
  last-id-error-social     ;id-error-behaviour-social in previous tick

  behaviour-change         ;has expressed behaviours changed this timestep? (true/false)
  behaviours-expressed     ;list of patches containing my expressed behaviours (list not agentset so that can be ordered)
  id-expressed             ;list containing proportion of each expressed behaviour (to compare to id-standard)

  behaviours-available     ;list of available behaviours for this tick
  behaviours-available-lists ;list of lists of behaviours available for agents
  minimum-behaviours       ;the minimum number of behaviours I can express

  id-expressed-social      ;mean of expressed behaviours of contacts (list of proportions, one for each behaviour)

  homestead                ;location where agent 'lives'
  yield                    ;weight for value returned from value-P (i.e. value = yield * value-P)
  income                   ;income in this timestep
  wealth                   ;current wealth accumulated
  profit                   ;profit for this timestep (should equal income - costs)
  costs                    ;costs for this timestep
  have-visited-meeting-point? ;did I visit a meeting point this timestep (true/false)
  cluster-coefficient      ;my cluster coefficient

  neighbours-list          ;holds id of original neighbours for Moore and vonThunen social networks (so they can be prevented from being removed)

]

patches-own
[
  behaviour    ;behaviour I am expressing
  agent-who    ;who of turtle I belong to
  patch-yield  ;as for turtle variable 'yield' - in some setup instances the agent gets their yield value from their homestead patch
]

breed [ line-painters line-painter ] ;for drawing the 'farm' boundary

line-painters-own [ lp_who ]         ;for drawing the 'farm' boundary

to setup

 ca
 clear-output

 random-seed seed

 ask patches
 [
   set pcolor white
   set agent-who nobody
   set behaviour nobody
 ]

 check-sliders
 check-behaviours-available
 setup-filenames

 setup-yield
 setup-turtles

 draw-behaviours-boundaries

 ask turtles
 [
   set-id-expressed-social
   calc-cluster-coefficient
 ]

 setup-meeting-points

 if(scenario-from-file? = true and use-values? = true)
 [
   type "Reading data from file..."
   read-values-from-file
   update-values-from-file
   set scenario-values-provided length values-scenario-list
   print "done."
 ]


 re-display
 do-plots
end

to go

  set added-conservation nobody
  set added-production nobody
  set added-diversification nobody
  ask turtles [ set have-visited-meeting-point? false ]

  ask turtles
  [
    set-behaviour
    set-id-error-behaviour
  ]

  if(count turtles = 0) [ stop ] ;turtles are killed in set-behaviour if wealth < 0 so check here if there are any turtles to simulate

  if(meeting-point?)
  [
    ;visiting meeting points if agents have changed behaviour
    visit-meeting-point added-production 0
    visit-meeting-point added-diversification 1
    visit-meeting-point added-conservation 2
  ]

  calc-network-density
  ask turtles [ calc-cluster-coefficient ]

  ask turtles
  [
    if(scenario-from-file? and not b-a_uniformTime and use-values? = false) [ set-year-behaviours-available ] ;if behaviours-available set by user and changes in time (uniform across agents or not), update for this year

    set-id-expressed-social
    set-id-error-social

    set-id-change

    set-id-error-behaviour
  ]

  ask turtles
  [
    if(remove-contacts? = true ) [ remove-contacts ]
    set-id-error-social
  ]

  re-display
  do-plots

  ;initial data output
  if(ticks = 0 and export-data? = true) [ export-turtle-data turtle-output-filename ]

  tick

  ;read next year's values if necessary
  if(scenario-from-file? = true and use-values? = true)
  [
    if(ticks = scenario-values-provided) [ stop ]
    update-values-from-file
  ]

  ;data output
  if(export-data? = true) [ export-turtle-data turtle-output-filename]
end

to setup-turtles

 ;distribute turtles in the world
 let side sqrt(number-of-agents)  ;number of turtles on one side of the grid

 let odd false
 if(side mod 2 > 0) [ set odd true ]

  while[count turtles < number-of-agents]
  [
    let my-xcor 0
    let my-ycor 0

    ;odd sides
    let gap-x ((world-width / 2) - 1 ) * (1 / ((side / 2) + 0.5)) ;this is the gap in pixels between each turtle on each side of the grid
    let gap-y ((world-height / 2) - 1 ) * (1 / ((side / 2) + 0.5))

    let half-side floor(side / 2)
    let this-x -1 * half-side
    let this-y -1 * half-side

    ;grid turtle locations
    while[this-x <= half-side]  ;iterate through the positions on the grid
    [
      while[this-y <= half-side]
      [

        if(odd = true or (odd = false and this-y != 0 and this-x != 0))   ;skip central row if side is even
        [
          ;work out the co-ordinates of that location
          set my-xcor floor(gap-x * this-x)
          set my-ycor floor(gap-y * this-y)

          ask patches with [pxcor = my-xcor and pycor = my-ycor]
          [
            sprout 1
            [
              set shape "circle"
              set color black
            ]
          ]
        ]

        set this-y this-y + 1
      ]

      set this-x this-x + 1
      set this-y -1 * half-side
    ]
  ]


  ;assign turtle attributes
  ask turtles
  [
    set homestead patch-here
    ifelse(variable-yield? = "Random") ;between 0.5 and 1.0
    [
      set yield random-float 0.49
      set yield precision (yield + 0.5) 2
    ]
    [
      ifelse(variable-yield? = "No")
      [ set yield 1 ]
      [ set yield [patch-yield] of homestead ] ;else variable-yield? = "From Map"
    ]

    set wealth 25
    set profit 0
    set income 0
    set costs 0

    set have-visited-meeting-point? false

    set neighbours-list []

    set minimum-behaviours  10
    let my-behaviours-initial minimum-behaviours  ;local variable that holds the number of initial behaviours given A-prop - updated below if > 10

    ;set intitial id-standard

    if(initial-standards = "Homogeneous")
    [
      ;all agents should have the same id-standard, as specified by sliders

      set id-standard []
      set id-standard fput id-standard-A id-standard ;id A (position 3 in id-standard)
      set id-standard fput id-standard-C id-standard ;id C (position 2 in id-standard)
      set id-standard fput id-standard-D id-standard ;id D (position 1 in id-standard)
      set id-standard fput id-standard-P id-standard ;id P (position 0 in id-standard)

    ]

    if(initial-standards = "Random")
    [
      ;id-standards vary between agents randomly
      set id-standard random-props
    ]


    if(initial-standards = "Distribution")
    [
      ;Set id-standard values based on normal distribution with mean from slider (id-standard-x) and sd = 0.1 (if mean = 0, value will always = 0)
      set id-standard distribution-props  id-standard-P id-standard-D id-standard-C id-standard-A
    ]


    ;create behaviours-expressed patch-set
    set behaviours-expressed patches with[
      (pxcor >= [xcor] of myself - 2) and
      (pxcor <= [xcor] of myself + 2) and
      (pycor < [ycor] of myself) and
      (pycor >= [ycor] of myself - 4)  ]

    ask behaviours-expressed
    [
      set agent-who [who] of myself
      set behaviour nobody  ;initial behaviour is nothing
    ]

    ;sort across then down for display (i.e. first patch is top left, last is bottom right)
    set behaviours-expressed sort-by [[pxcor] of ?1 < [pxcor] of ?2] behaviours-expressed
    set behaviours-expressed sort-by [[pycor] of ?1 > [pycor] of ?2] behaviours-expressed

    ifelse(expressed-matches-standard? = true)
    [
      ;initial expressed-behaviour should reflect initial id-standard as closely as possible
      ;calculate how many behaviours should be expressed (i.e. patches assigned) in total given proportion for Agri-business

      if(item 3 id-standard > 0) ;position 3 in id-standard is A
      [
        set my-behaviours-initial calc-my-behaviours-initial item 3 id-standard my-behaviours-initial
      ]

      ;once total number of behaviours is calculated calculate how many (patches) should be in each of the remaining behaviours
      let sum-CDP (item 2 id-standard + item 1 id-standard + item 0 id-standard)
      let count-C round (my-behaviours-initial * (item 2 id-standard / sum-CDP))
      let count-D round (my-behaviours-initial * (item 1 id-standard / sum-CDP))
      let count-P round (my-behaviours-initial * (item 0 id-standard / sum-CDP))

      set-initial-behaviours my-behaviours-initial count-C count-D count-P
    ]


    [
      ;else initial expressed-behaviour is independent of id-standard

      if(initial-expressed = "Homogeneous")
      [
        ;all agents have same initial expressed-behaviours as specified by sliders

        ;calculate how many behaviours should be expressed (i.e. patches assigned) in total given proportion for Agri-business
        set my-behaviours-initial calc-my-behaviours-initial expressed-A my-behaviours-initial

        ;once total number of behaviours is calculated calculate how many (patches) should be in each of the remaining behaviours
        let sum-CDP (expressed-C + expressed-D + expressed-P)
        let count-C round (my-behaviours-initial * (expressed-C / sum-CDP))
        let count-D round (my-behaviours-initial * (expressed-D / sum-CDP))
        let count-P round (my-behaviours-initial * (expressed-P / sum-CDP))

        set-initial-behaviours my-behaviours-initial count-C count-D count-P

      ]


      if(initial-expressed = "Distribution")
      [
        ;set initial expressed behaviours based on normal distribution with mean from slider (id-standard-x) and sd = 0.1 (if mean = 0, value will always = 0)
        let props []

        set props distribution-props expressed-P expressed-D expressed-C expressed-A

        let randP item 0 props
        let randD item 1 props
        let randC item 2 props
        let randA item 3 props

        set my-behaviours-initial calc-my-behaviours-initial randA my-behaviours-initial

        ;once total number of behaviours is calculated calculate how many (patches) should be in each of the remaining behaviours
        let sum-CDP (randC + randD + randP)
        let count-C round (my-behaviours-initial * (randC / sum-CDP))
        let count-D round (my-behaviours-initial * (randD / sum-CDP))
        let count-P round (my-behaviours-initial * (randP / sum-CDP))

        set-initial-behaviours my-behaviours-initial count-C count-D count-P
      ]


      if(initial-expressed = "Random")
      [
        ;generate random proportions for standard
        let props random-props

        let randP item 0 props
        let randD item 1 props
        let randC item 2 props
        let randA item 3 props

        set my-behaviours-initial calc-my-behaviours-initial randA my-behaviours-initial

        let sum-CDP (randC + randD + randP)
        let count-C round (my-behaviours-initial * (randC / sum-CDP))
        let count-D round (my-behaviours-initial * (randD / sum-CDP))
        let count-P round (my-behaviours-initial * (randP / sum-CDP))

        set-initial-behaviours my-behaviours-initial count-C count-D count-P
      ]
    ]

    set-id-error-behaviour ;also calculates id-expressed

  ]

  set-social-network

  ask turtles
  [
    set-id-expressed-social
    set-id-error-social
  ]

  ;if behaviours-available to be set from file, do so here
  if(scenario-from-file? = true and use-values? = false)
  [
    type "Reading data from file..."
    read-behaviours-available-from-file
    ask turtles
    [
      set-year-behaviours-available
      if(empty? behaviours-available) [ user-message word "No behaviours-available data for turtle" who ]
    ]
    print "done."
  ]

  ;if behaviours-available to be set randomly, do so here
  if(scenario-from-file? = false and use-values? = false) [ if(use-values? = false) [ set-random-behaviours ] ]

  if(use-values? = true)
  [
    ask turtles
    [
      let rand random-float 1
      ifelse(rand < available-A)
      [ set behaviours-available [ 1 1 1 1 ] ]
      [ set behaviours-available [ 1 1 1 0 ] ]
    ]
  ]
end

to set-social-network

 ;setup the inital social network

 if(initial-social-network = "All")
 [
   ;all turtles link to all other turtles
   ask turtles
   [
     create-links-to other turtles
   ]
 ]


 if(initial-social-network = "Random")
 [
   ;turtles randomly link to other turtles
   ask turtles
   [
     let rand random-normal 5 2
     if(rand < 0) [ set rand 0 ]
     set rand round rand
     create-links-to n-of rand other turtles
   ]
 ]





 if(initial-social-network = "Moore Neighbours" or initial-social-network = "vonNeumann Neighbours")
 [

   ;this is somewhat inelegant but needed because the grid agents are created on is not a perfectly uniform lattice with uneven spaces within the grid (if even number of agents)
   ;essentially, we find the nearest agents up, down, right and left of the agent
   ;then we ask the neighbours down and up to find the nearest neighbout on their left and right

   ask turtles
   [
     let upN nobody
     let downN nobody
     let leftN nobody
     let rightN nobody
     let DcornerL nobody
     let DcornerR nobody
     let UcornerL nobody
     let UcornerR nobody

     if (any? turtles with [ycor > [ycor] of myself])
     [ set upN min-one-of turtles with [ xcor = [xcor] of myself and ycor > [ycor] of myself ] [distance myself ] ]

     if (any? turtles with [ycor < [ycor] of myself])
     [ set downN min-one-of turtles with [ xcor = [xcor] of myself and ycor < [ycor] of myself ] [distance myself ] ]

     if (any? turtles with [xcor < [xcor] of myself])
     [ set leftN min-one-of turtles with [ ycor = [ycor] of myself and xcor < [xcor] of myself ] [distance myself ] ]

     if (any? turtles with [xcor > [xcor] of myself])
     [ set rightN min-one-of turtles with [ ycor = [ycor] of myself and xcor > [xcor] of myself ] [distance myself ] ]

     if(initial-social-network = "Moore Neighbours")
     [
       if(downN != nobody)
       [
         ask downN
         [
           if (any? turtles with [xcor < [xcor] of myself])
           [ set DcornerL min-one-of turtles with [ ycor = [ycor] of myself and xcor < [xcor] of myself ] [distance myself ] ]

           if(any? turtles with [xcor > [xcor] of myself])
           [ set DcornerR min-one-of turtles with [ ycor = [ycor] of myself and xcor > [xcor] of myself ] [distance myself ] ]
         ]
       ]

       if(upN != nobody)
       [
         ask upN
         [
           if (any? turtles with [xcor < [xcor] of myself])
           [ set UcornerL min-one-of turtles with [ ycor = [ycor] of myself and xcor < [xcor] of myself ] [distance myself ] ]

           if(any? turtles with [xcor > [xcor] of myself])
           [ set UcornerR min-one-of turtles with [ ycor = [ycor] of myself and xcor > [xcor] of myself ] [distance myself ] ]
         ]
       ]

       create-links-to (turtle-set upN downN leftN rightN DcornerL DcornerR UcornerL UcornerR)
       ask out-link-neighbors [ set neighbours-list fput [who] of myself neighbours-list ]
     ]

     if(initial-social-network = "vonNeumann Neighbours")
     [
       create-links-to (turtle-set upN downN leftN rightN)
       ask out-link-neighbors [ set neighbours-list fput [who] of myself neighbours-list ]
     ]
   ]
 ]

 ask turtles
 [
   if(not any? out-link-neighbors) [ create-link-to one-of other turtles ]
 ]

 if(show-links? = false) [ ask links [ set hidden? true ] ]

 calc-network-density
end

to-report calc-my-behaviours-initial [ randA my-behaviours-initial ]

  ;calculate how many expressed behaviours additional to my-behaviours-initial are needed to best match randA proportion

  if(randA > 0)
  [
    let a 1
    let y a / 12
    let min-diffc sqrt((randA - y) ^ 2)

    let found false

    while[not found]
      [
        set a a + 1

        set y (a / (10 + (2 * a)))
        let diffc sqrt((randA - y) ^ 2)
        ifelse(diffc > min-diffc)
          [
            set my-behaviours-initial (minimum-behaviours + a - 1)
            set found true
          ]
          [ set min-diffc diffc ]
      ]
  ]

  report my-behaviours-initial
end

to visit-meeting-point [ agents location]

  ;move turtles to the appropriate meeting point (where they may potentially make contacts)
  ;agents is and agent-set and location is the behaviour meeting point to move those agents to

  if(agents != nobody and count agents > 1)
  [
    ifelse(location = 0)
    [
      ;is there more than one production meeting point? (yes if this is an agentset, no if only a single patch)
      ifelse(is-agentset? production-meeting-points)
      [
        ask agents
        [
          let nearest min-one-of production-meeting-points [distance myself]
          move-to nearest
          set have-visited-meeting-point? true
        ]
      ]
      [
        ask agents
        [
          move-to production-meeting-points
          set have-visited-meeting-point? true
        ]
      ]

      ask agents [ make-contacts-at-meeting-point ]
      ask agents [ move-to homestead ] ;agents should have moved home already, but just in case
    ]

    [
      if(location = 1)
      [
        ask agents
        [
          move-to diversification-meeting-point
          set have-visited-meeting-point? true
        ]
      ]

      if(location = 2)
      [
        ask agents
        [
          move-to conservation-meeting-point
          set have-visited-meeting-point? true
        ]
      ]

      ask agents [ make-contacts-at-meeting-point ]
      ask agents [ move-to homestead ] ;agents should have moved home already, but just in case
    ]
  ]
end

to make-contacts-at-meeting-point

  ;assumes we are asking turtles at a given meeting point (patch) and makes connections between agents at that patch

  if(any? other turtles-here)
  [
    let new-contact one-of other turtles-here

    if(out-link-neighbors != nobody)
      [
        if(not member? new-contact out-link-neighbors)
          [
            create-link-to new-contact
            create-link-from new-contact
            ask new-contact [ move-to homestead ] ;we only want to add a single contact in each visit so move turtles home after connecting
            move-to homestead
          ]
      ]
  ]
end

to-report intersect [ a b ]

   ;reports a turtle-set of turtles that are found in both agentset a and agentset b

   set a sort a
   set b sort b
   let c []
   while [ not (empty? a or empty? b ) ]
   [ if-else first a < first b
     [ set a but-first a
     ]
     [ if-else first a > first b
       [ set b but-first b
       ]
       [ set c fput first a c
         set a but-first a
         set b but-first b
       ]
     ]
   ]
   report (turtle-set c)
end

to-report distribution-props [ mean-P mean-D mean-C mean-A ]

  ;sets proportions based on normal distribution with mean values provided and sd = 0.1 (if mean = 0, value will always = 0)

  let randA random-normal mean-A 0.1
  if(randA < 0 or mean-A = 0) [ set randA 0 ]
  if(randA > 0.35) [ set randA 0.35 ] ;with initial-behaviours = 10 and max allow expressed behaviours = 20, max prop A can take is 0.33
  set randA (round (randA * 20)) / 20 ;round to 0.05
  set randA precision randA 2

  let randP random-normal mean-P 0.1
  if(randP < 0 or mean-P = 0) [ set randP 0 ]
  set randP (round (randP * 20)) / 20 ;round to 0.05
  set randP precision randP 2


  let randD random-normal mean-D 0.1
  if(randD < 0 or mean-D = 0) [ set randD 0 ]
  set randD (round (randD * 20)) / 20 ;round to 0.05
  set randD precision randD 2

  let randC 1 - randA - randP - randD
  if(randC < 0 or mean-C = 0) [ set randC 0 ]
  set randC (round (randC * 20)) / 20 ;round to 0.05
  set randC precision randC 2


  ;sum of standard may be greater than 1, so reduce total by reducing individual values in random order
  while[ (randP + randD + randC + randA) > 0.99 ] ;use 0.99 because of internal NetLogo rounding error
    [
      let r random 4
      if(r = 0 and randP >= 0.05) [ set randP randP - 0.05 set randP (round (randP * 20)) / 20] ;round to 0.05]
      if(r = 1 and randD >= 0.05) [ set randD randD - 0.05 set randD (round (randD * 20)) / 20] ;round to 0.05]
      if(r = 2 and randC >= 0.05) [ set randC randC - 0.05 set randC (round (randC * 20)) / 20] ;round to 0.05]
      if(r = 3 and randA >= 0.05 and randA != 0.35) [ set randA randA - 0.05 set randA (round (randA * 20)) / 20] ;round to 0.05]
    ]

  ;sum of standard may be less than 1, so increase total by increasing individual values in random order
  while[ (randP + randD + randC + randA) < 0.99 ]
    [
      let r random 4
      if(r = 0 and mean-P != 0) [ set randP randP + 0.05 set randP (round (randP * 20)) / 20] ;round to 0.05]
      if(r = 1 and mean-D != 0) [ set randD randD + 0.05 set randD (round (randD * 20)) / 20] ;round to 0.05]
      if(r = 2 and mean-C != 0) [ set randC randC + 0.05 set randC (round (randC * 20)) / 20] ;round to 0.05]
      if(r = 3 and randA != 0 and randA < 0.30) [ set randA randA + 0.05 set randA (round (randA * 20)) / 20] ;round to 0.05]
    ]

  let props []

  set props fput randA props
  set props fput randC props
  set props fput randD props
  set props fput randP props

  report props
end

to-report random-props

  ;generate random proportions for a standard [i.e. list of three values, all 0-1]

  let randA random-float 0.35 ;with initial-behaviours = 10 and max allow expressed behaviours = 20, max prop A can take is 0.33
  let rand-order shuffle [ "p" "d" "c" ]

  ;because total of standard must equal one, after the first value has been set, later values must be scaled
  let randP 0
  let randD 0
  let randC 0

  let randFirst 0
  let randSecond 0
  let randThird 0

  set randFirst random-float (1 - randA)
  set randSecond random-float (1 - randA - randFirst)
  set randThird 1 - randA - randFirst - randSecond

  ;randomly assign the three random values to P D and C - could make this code more efficient in future
  ifelse(item 0 rand-order = "p")
    [ set randP randFirst ]
    [ ifelse(item 0 rand-order = "d")
      [ set randD randFirst ]
      [ set randC randFirst ]
    ]

  ifelse(item 1 rand-order = "p")
    [ set randP randSecond ]
    [ ifelse(item 1 rand-order = "d")
      [ set randD randSecond ]
      [ set randC randSecond ]
    ]

  ifelse(item 2 rand-order = "p")
    [ set randP randThird ]
    [ ifelse(item 2 rand-order = "d")
      [ set randD randThird ]
      [ set randC randThird ]
    ]

   let props []
   set props fput precision randA 3 props
   set props fput precision randC 3 props
   set props fput precision randD 3 props
   set props fput precision randP 3 props

   report props
end

to set-initial-behaviours [my-behaviours-initial count-C count-D count-P]

  ;used in initial agent setup to assign expressed-behaviours given counts of patches

  ;if total behaviours is too large because of rounding, randomly reduce
  while[(count-C + count-D + count-P) > my-behaviours-initial]
  [
    let rand random 3
    if(rand = 0) [ set count-C count-C - 1 ]
    if(rand = 1) [ set count-D count-D - 1 ]
    if(rand = 2) [ set count-P count-P - 1 ]
  ]


  ;if total behaviours is too small because of rounding, randomly increase
  while[(count-C + count-D + count-P) < my-behaviours-initial]
  [
    let rand random 3
    if(rand = 0) [ set count-C count-C + 1 ]
    if(rand = 1) [ set count-D count-D + 1 ]
    if(rand = 2) [ set count-P count-P + 1 ]
  ]

  ;now assign these number of patches to behaviours-expressed
  let counter-C 0
  let counter-D 0
  let counter-P 0
  foreach behaviours-expressed
  [
    ifelse(counter-C < count-C)
      [
        ask ? [ set behaviour 2 ]
        set counter-C counter-C + 1
      ]

      [
        ifelse(counter-D < count-D)
        [
          ask ? [ set behaviour 1 ]
          set counter-D counter-D + 1
        ]

        [
          if(counter-P < count-P)
          [
            ask ? [ set behaviour 0 ]
            set counter-P counter-P + 1
          ]
        ]
      ]
  ]
end

to display-behaviours

  ;display behaviours-expressed in uniform manner for all turtles for easier visual comparison

  set behaviours-expressed patch-set behaviours-expressed
  ask behaviours-expressed [ set pcolor white ] ;first re-set colour of all patches

  ;create an ordered list of the behaviours
  let ordered-behaviour [behaviour] of behaviours-expressed with [ behaviour != nobody ]
  set ordered-behaviour sort-by [?1 < ?2] ordered-behaviour


  ;loop through behaviours spatially applying behaviours from ordered list in turn
  ;so from top left to bottom right, producer behavours will always be shown first, then D, then C
  let o 0
  let max-o ((length ordered-behaviour) - 1)
  let j ycor - 1

  while[j >= ycor - 4]
  [
    let i xcor - 2

    while[i <= xcor + 2]
    [
      let b nobody
      if(o <= max-o)
      [ set b item o ordered-behaviour ]

      ask behaviours-expressed with [pxcor = i and pycor = j] [ set behaviour b ]

      set o o + 1
      set i i + 1
    ]

    set j j - 1
  ]

  ;now set colours
  ask behaviours-expressed with [ behaviour != nobody ]
  [
    if(behaviour = 0) [ set pcolor yellow ]
    if(behaviour = 1) [ set pcolor grey ]
    if(behaviour = 2) [ set pcolor green ]
  ]

  ;if using behaviours available, make the patches on either side of the turtle indicate whether a behaviour is available or not (white if not available)
  ifelse(use-values? = false)
  [
    ;set colours of representative behaviours-available patches
    ifelse(item 0 behaviours-available = 1)
    [ ask patches with [pxcor = [xcor] of myself - 2 and pycor = [pycor] of myself] [ set pcolor yellow ] ]
    [ ask patches with [pxcor = [xcor] of myself - 2 and pycor = [pycor] of myself] [ set pcolor white ] ]

    ifelse(item 1 behaviours-available = 1)
    [ ask patches with [pxcor = [xcor] of myself - 1 and pycor = [pycor] of myself] [ set pcolor grey ] ]
    [ ask patches with [pxcor = [xcor] of myself - 1 and pycor = [pycor] of myself] [ set pcolor white ] ]

    ifelse(item 2 behaviours-available = 1)
    [ ask patches with [pxcor = [xcor] of myself + 1 and pycor = [pycor] of myself] [ set pcolor green ] ]
    [ ask patches with [pxcor = [xcor] of myself + 1 and pycor = [pycor] of myself] [ set pcolor white ] ]

    ifelse(item 3 behaviours-available = 1)
    [ ask patches with [pxcor = [xcor] of myself + 2 and pycor = [pycor] of myself] [ set pcolor blue ] ]
    [ ask patches with [pxcor = [xcor] of myself + 2 and pycor = [pycor] of myself] [ set pcolor white ] ]
  ]
  [
    ;if using values show if agribusiness is available
    ifelse(item 3 behaviours-available = 1)
    [ ask patches with [pxcor = [xcor] of myself + 2 and pycor = [pycor] of myself] [ set pcolor blue ] ]
    [ ask patches with [pxcor = [xcor] of myself + 2 and pycor = [pycor] of myself] [ set pcolor white ] ]
  ]
end

to-report hierarchy-position [ id standard ]

  ;reports where id is in the hierarchy for standard. 0 = top, 3 = bottom
  let counter 0

  if(id != 0) [ if(item id standard < item 0 standard) [ set counter counter + 1 ]]
  if(id != 1) [ if(item id standard < item 1 standard) [ set counter counter + 1 ]]
  if(id != 2) [ if(item id standard < item 2 standard) [ set counter counter + 1 ]]
  if(id != 3) [ if(item id standard < item 3 standard) [ set counter counter + 1 ]]

  report counter
end

to-report calc-swapped-profit [a b]

  ;returns income if swapping from behaviour a to behaviour b

  ;first check if behaviour can be added (i.e. if A is available) or removed (i.e. number of behaviours expressed is not already a minimum
  ifelse((a = nobody and item 3 behaviours-available != 1) or (b = nobody and count behaviours-expressed with [behaviour != nobody] = minimum-behaviours))
  [ report profit ]
  [
    let p 0

    ifelse(a = b or not any? behaviours-expressed with [behaviour = a]) [ report profit ] ;no point in checking swapping same behaviours!
    [
      ask one-of behaviours-expressed with [ behaviour = a ] [ set behaviour b ]
      set p precision ((calc-income-from-behaviours behaviours-expressed) - (calc-costs-from-behaviours behaviours-expressed)) 2
      ask one-of behaviours-expressed with [behaviour = b ] [ set behaviour a ]  ;switch back to previous behaviour
      report p
    ]
  ]
end

to-report calc-swapped-error [a b id-error]

  ;returns id-error if swapping from behaviour a to behaviour b (does not consider income)

  ;first check if behaviour can be added (i.e. if A is available) or removed (i.e. number of behaviours expressed is not already a minimum
  ifelse((a = nobody and item 3 behaviours-available != 1) or (b = nobody and count behaviours-expressed with [behaviour != nobody] = minimum-behaviours))
  [ report id-error ]
  [
    let ie 0

    ifelse(item b behaviours-available != 1 or not any? behaviours-expressed with [behaviour = a]) [ report id-error ] ;if these behaviours are not available
    [
      ifelse(a = b) [ report id-error ] ;no point in checking swapping same behaviours!
      [
        ask one-of behaviours-expressed with [ behaviour = a ] [ set behaviour b ]
        let dummy-standard calc-standard-from-behaviours behaviours-expressed ;calculate the standard from this new behaviour set
        set ie precision compare-standards dummy-standard id-standard 2
        ask one-of behaviours-expressed with [behaviour = b ] [ set behaviour a ]  ;switch back to previous behaviour
        report ie
      ]
    ]
  ]
end

to-report calc-swapped-error-profit [a b id-error]

  ;if swapping from behaviour a to behaviour b does not decrease profit returns id-error for newly swapped behaviours
  ;else returns original id-error

  ;first check if behaviour can be added (i.e. if A is available) or removed (i.e. number of behaviours expressed is not already a minimum
  ifelse((a = nobody and item 3 behaviours-available != 1) or (b = nobody and count behaviours-expressed with [behaviour != nobody] = minimum-behaviours))
  [ report id-error ]
  [
    let ie 0

    ifelse(a = b or not any? behaviours-expressed with [behaviour = a]) [ report id-error ] ;no point in checking swapping same behaviours!
    [
      ask one-of behaviours-expressed with [ behaviour = a ] [ set behaviour b ]
      let p (calc-income-from-behaviours behaviours-expressed) - (calc-costs-from-behaviours behaviours-expressed)

      ifelse(p > profit)
      [
        let dummy-standard calc-standard-from-behaviours behaviours-expressed ;calculate the standard from this new behaviour set
        set ie precision compare-standards dummy-standard id-standard 2
        ask one-of behaviours-expressed with [behaviour = b ] [ set behaviour a ]  ;switch back to previous behaviour
        report ie
      ]
      [
        ask one-of behaviours-expressed with [behaviour = b ] [ set behaviour a ]  ;switch back to previous behaviour
        report id-error
      ]
    ]
  ]
end

to-report calc-added-profit [b]

  ;returns profit if adding behaviour b

  ifelse(item 3 behaviours-available != 1)  ;first check if behaviour can be added (i.e. if A is available)
  [ report profit ]
  [
    let p 0

    ifelse(not any? behaviours-expressed with [behaviour = nobody]) [ report profit ] ;no point in checking if we can't add a behaviour!
    [
      ask one-of behaviours-expressed with [ behaviour = nobody ] [ set behaviour b ]
      set p precision ((calc-income-from-behaviours behaviours-expressed) - (calc-costs-from-behaviours behaviours-expressed)) 2
      ask one-of behaviours-expressed with [behaviour = b ] [ set behaviour nobody ]  ;switch back to previous behaviour
      report p
    ]
  ]
end

to-report calc-added-error-profit[b id-error]

  ;if adding behaviour b does not decrease profit returns id-error for newly added behaviours-expressed
  ;else returns original id-error

  ifelse(item 3 behaviours-available != 1)  ;first check if behaviour can be added (i.e. if A is available)
  [ report id-error]
  [
    let ie 0

    ifelse(not any? behaviours-expressed with [behaviour = nobody]) [ report id-error ] ;no point in checking if we can't add a behaviour!
    [
      ask one-of behaviours-expressed with [ behaviour = nobody ] [ set behaviour b ]
      let p (calc-income-from-behaviours behaviours-expressed) - (calc-costs-from-behaviours behaviours-expressed)

      ifelse(p > profit)
      [
        let dummy-standard calc-standard-from-behaviours behaviours-expressed ;calculate the standard from this new behaviour set
        set ie precision compare-standards dummy-standard id-standard 2
        ask one-of behaviours-expressed with [behaviour = b ] [ set behaviour nobody ]  ;switch back to previous behaviour
        report ie
      ]
      [
        ask one-of behaviours-expressed with [behaviour = b ] [ set behaviour nobody ]  ;switch back to previous behaviour
        report id-error
      ]
    ]
  ]
end

to-report calc-added-error[b id-error]

  ;returns id-error if adding behaviour b (does not consider income)
  ifelse(item 3 behaviours-available != 1)  ;first check if behaviour can be added (i.e. if A is available)
  [ report id-error]
  [
    let ie 0

    ifelse(item b behaviours-available != 1) [ report id-error ] ;if this behaviour is not available or no behaviours can be added
    [
      ifelse(not any? behaviours-expressed with [behaviour = nobody]) [ report id-error ] ;no point in checking if we can't add a behaviour!
      [
        ask one-of behaviours-expressed with [ behaviour = nobody ] [ set behaviour b ]
        let dummy-standard calc-standard-from-behaviours behaviours-expressed ;calculate the standard from this new behaviour set
        set ie precision compare-standards dummy-standard id-standard 2
        ask one-of behaviours-expressed with [behaviour = b ] [ set behaviour nobody ]  ;switch back to previous behaviour
        report ie
      ]
    ]
  ]
end

to set-maximised-behaviour

  ;set behaviour to maximise profit

  let target-behaviour 0
  let swapped []
  let add -1

  let hpP hierarchy-position 0 id-standard
  let hpD hierarchy-position 1 id-standard
  let hpC hierarchy-position 2 id-standard

  ifelse(profit < 0)
  [ set target-behaviour -1 ] ;swap to whichever behaviour maximises income
  [
    ;otherwise we are maximising because A is in top two of id-standard. find other behaviour in top two to aim to add (0 is already set)
    if(hpD < hpP and hpD < hpC) [ set target-behaviour 1 ] ;do not set as target if not higher ranked than both other behaviours (might be equal)
    if(hpC < hpP and hpC < hpD) [ set target-behaviour 2 ]
  ]

  let my-value-P (value-P * yield)

  let ordered-values []
  if(any? behaviours-expressed with [behaviour = 2]) [ set ordered-values fput value-C ordered-values ] ;only add behaviours to the list if they are available
  if(any? behaviours-expressed with [behaviour = 1]) [ set ordered-values fput value-D ordered-values ]
  if(any? behaviours-expressed with [behaviour = 0]) [ set ordered-values fput my-value-P ordered-values ]

  set ordered-values sort-by [?1 < ?2] ordered-values ;lowest value is in position 0, highest in position 2

  ;if there is a target behaviour, check if swapping lowest expressed non-target value behaviour for target or adding target would increase profit
  ifelse(target-behaviour >= 0)
  [
    let lowest-value-behaviour 0
    let swapped-profit -999

    if(not empty? ordered-values)
    [
      let found false
      foreach(ordered-values)
      [
        if(? = my-value-P and target-behaviour != 0 and found = false)
        [
          set lowest-value-behaviour 0
          set found true
        ]
        if(? = value-D and target-behaviour != 1 and found = false)
        [
          set lowest-value-behaviour 1
          set found true
        ]
        if(? = value-C and target-behaviour != 2 and found = false)
        [
          set lowest-value-behaviour 2
          set found true
        ]
      ]

      set swapped-profit calc-swapped-profit lowest-value-behaviour target-behaviour
      if(swapped-profit > profit)
      [
        set swapped fput target-behaviour swapped
        set swapped fput lowest-value-behaviour swapped
        set add -1
      ]
    ]

    ;check adding target behaviour
    let added-profit calc-added-profit target-behaviour
    if(added-profit > swapped-profit and added-profit > profit)
    [
      set swapped []
      set add target-behaviour
    ]
  ]


  ;otherwise, if no target behaviour, check if swapping lowest value behaviour for any other behaviour or adding a non-lowest value behaviour would increase profit
  [
    ;for comments on how this 'else' section works see set-ideal-behaviour
    let a 0
    let b 0
    let swapped-profit -999
    let best-profit profit

    let check-order [ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16]                ;generate randomly ordered list in which to check behaviour changes
    set check-order shuffle check-order
    let divisor sqrt(length check-order)

    foreach(check-order)
    [

      set a int(? / divisor)
      if((remainder ? divisor) = 0 ) [ set a a - 1 ]

      set b (remainder ? divisor) - 1
      if((remainder ? divisor) = 0) [ set b divisor - 1 ]

      if(a != b)
      [
        if(a = 4) [ set a nobody ]
        if(b = 4) [ set b nobody ]
        set swapped-profit calc-swapped-profit a b
        if(swapped-profit > best-profit)
        [
          set swapped []
          set swapped fput b swapped
          set swapped fput a swapped
          set add -1
          set best-profit swapped-profit
        ]
      ]

    ]
  ]

  ifelse(empty? swapped)
  [
    ifelse(add > -1)
    [ add-behaviour add ]
    [  ] ;nothing improved profit
  ]
  [
    ifelse(add > -1)
    [ show "Error: cannot both add and swap behaviours" ]
    [ swap-behaviours item 0 swapped item 1 swapped ]
  ]
end

to add-behaviour [add]

  ;changes a behaviour expressed patch behaviour from nobody to add (with error check for availability of patches with behaviour = nobody)

  ifelse(any? behaviours-expressed with [behaviour = nobody])
  [
    ask one-of behaviours-expressed with [behaviour = nobody] [ set behaviour add ]
  ]
  [ show "Error: could not add behavour - behaviours already full"]
end

to set-ideal-behaviour [ check-profit ]

  ;set behaviour to minimise id-error
  ;when check-profit is true, selected behavour must ensure profit does not drop below zero for the timestep
  ;when check-profit is false, profit is not considered but availability is

  let a 0
  let b 0
  let swapped-error 100 ;initial dummy value
  let best-error id-error-behaviour
  let swapped [] ;if not empty at end of this procedure, values in here will be used to swap a patch's behaviour

  ;generate randomly ordered list in which to check behaviour changes
  ;by including 'no expressed behaviour' (nobody) in this list we can also automatically check adding and removing behaviours
  ;with four possible behaviours (P C D and none) we have 16 potential different swap combinations (including swapping to same behaviour, we'll check for that below)
  ;each number corresponds to a swap combination
  let check-order [ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ]
  set check-order shuffle check-order
  let divisor sqrt(length check-order)

  ;iterate through the random order of swaps to check
  foreach(check-order)
  [
    ;for this swap combination id set a and b
    set a int(? / divisor)
    if((remainder ? divisor) = 0 ) [ set a a - 1 ]

    set b (remainder ? divisor) - 1
    if((remainder ? divisor) = 0) [ set b divisor - 1 ]

    ;no point in checking if no difference in what we're swapping FROM to what we're swapping TO
    if(a != b)
    [
      if(a = 4) [ set a nobody ]
      if(b = 4) [ set b nobody ]

      ifelse(check-profit = true)
      [ set swapped-error calc-swapped-error-profit a b id-error-behaviour ]
      [ set swapped-error calc-swapped-error a b id-error-behaviour ]

      ;if swapping the behaviour improves error, replace the swapped list
      if(swapped-error < best-error)
      [
        set swapped []
        set swapped fput b swapped
        set swapped fput a swapped
        set best-error swapped-error
      ]
    ]
   ]

  if(not empty? swapped) [ swap-behaviours item 0 swapped item 1 swapped ]
end

to swap-behaviours [ a b]

  ;selects a random patch with behaviour = a and changes it to behaviour b (with error check)

  ifelse(any? behaviours-expressed with [behaviour = a])
  [
    ask one-of behaviours-expressed with [behaviour = a] [ set behaviour b ]
  ]
  [ show "Error: cannot swap behaviours because FROM behaviour is not in behaviours-expressed" ]
end

to set-behaviour

  ;turtles may potentially change the behaviour of one expressed-behaviours patch in a given timestep

  set behaviour-change false ;indicates whether an expressed behaviour has changed this timestep

  let initial-behaviours get-behaviours-from-patches behaviours-expressed

  ;if values should be considered
  ifelse(use-values?)
  [
    ;check if agri-business is in top two places of salience hierarchy -
    ;if so look to maximise profit with other behaviour in top two regardless of matching id-standard
    ;otherwise satisfice (i.e. if income is greater than min reqd, match behaviour to id-standard (but check change doesn't drop income below min reqd), otherwise increase income

    let maximiser false
    if((hierarchy-position 3 id-standard) < 2 and item 3 id-standard != 0) [ set maximiser true ]

    set income precision calc-income-from-behaviours behaviours-expressed 2
    set costs precision calc-costs-from-behaviours behaviours-expressed 2
    set profit precision (income - costs) 2
    if(profit < 0) [ set maximiser true ]

    ifelse(maximiser = true)
    [ set-maximised-behaviour ]  ;profit maximisation
    [ set-ideal-behaviour true ] ;satisfice (i.e. ensure profit sufficient to live on but also consider identity)


    set income precision calc-income-from-behaviours behaviours-expressed 2
    set costs precision calc-costs-from-behaviours behaviours-expressed 2
    set profit precision (income - costs) 2
    set wealth precision (wealth + profit) 2

    if(wealth < 0) ;if wealth < 0, kill the agent
    [
      ask behaviours-expressed [ set behaviour nobody ]
      display-behaviours
      die
    ]

  ]

  ;else, if values should not be considered, do not consider income
  [ set-ideal-behaviour false ] ;consider only identity

  ;check how behaviours have changed so that agents visit correct meeting-points (if there are multiple)
  let current-behaviours get-behaviours-from-patches behaviours-expressed

  if(compare-behaviours initial-behaviours current-behaviours 0)
  [
    set added-production (turtle-set self added-production) ;add self to list of turtles which have added production behaviour
    set behaviour-change true
  ]
  if(compare-behaviours initial-behaviours current-behaviours 1)
  [
    set added-diversification (turtle-set self added-diversification)  ;add self to list of turtles which have added diversification behaviour
    set behaviour-change true
  ]
  if(compare-behaviours initial-behaviours current-behaviours 2)
  [
    set added-conservation (turtle-set self added-conservation)  ;add self to list of turtles which have added conservation behaviour
    set behaviour-change true
  ]
end

to-report compare-behaviours [ oldList newList number ]

  ;returns true if more instances of number are found in newList than oldList (otherwise returns false)

  let reporter false

  if(member? number newList)
  [
    ifelse(member? number oldList)
    [
      let oldCount 0
      let newCount 0

      foreach oldList [ if(? = number) [ set oldCount oldCount + 1 ] ]

      foreach newList [ if(? = number) [ set newCount newCount + 1 ] ]

      if(newCount > oldCount) [ set reporter true ]
    ]

    [ set reporter true ] ;if a member of new list but not old list MUST be greater count!
  ]

  report reporter
end

to-report get-behaviours-from-patches [ behaviour-patches ]

  ;converts behaviours in an agentset to a behaviours in a list

  let behaviour-list []
  ask behaviour-patches [ set behaviour-list fput behaviour behaviour-list ]
  report behaviour-list
end

to-report calc-standard-from-behaviours [ behaviours ]

  ;calculates and returns the proportions of the different elements of behaviours

  let standard [ ]

  let denom count behaviours with [behaviour != nobody]

  set denom (denom + (denom - minimum-behaviours))

  set standard fput ((count behaviours with [behaviour != nobody] - minimum-behaviours) / denom) standard
  set standard fput ((count behaviours with [behaviour = 2]) / denom) standard
  set standard fput ((count behaviours with [behaviour = 1]) / denom) standard
  set standard fput ((count behaviours with [behaviour = 0]) / denom) standard

  report standard
end

to-report calc-income-from-behaviours [ behaviours ]

  ;calculate the income from behaviours given the corresponding values and yield

  let temp-income 0

  ask behaviours
  [
    if(behaviour = 0) [ set temp-income temp-income + (value-P * [yield] of myself) ]
    if(behaviour = 1) [ set temp-income temp-income + value-D ]
    if(behaviour = 2) [ set temp-income temp-income + value-C ]
  ]

  report temp-income
end

to-report calc-costs-from-behaviours [ behaviours ]

  ;calculate the cost of exhbiting the current set of behaviours (currently simply 0.5 for each expressed behaviour)

  let temp-costs 0
  set temp-costs (count behaviours with [behaviour != nobody]) / 2
  report temp-costs
end

to set-id-error-behaviour

  ;calculates difference between agents' id-standard and their expressed behaviour

  set last-id-error-behaviour id-error-behaviour
  set id-error-behaviour 0

  let temp-behaviours-expressed patch-set behaviours-expressed

  let denom count temp-behaviours-expressed with [behaviour != nobody]
  set denom (denom + (denom - minimum-behaviours))

  set id-expressed []

  set id-expressed fput precision ((count temp-behaviours-expressed with [behaviour != nobody] - minimum-behaviours) / denom) 3 id-expressed
  set id-expressed fput precision ((count temp-behaviours-expressed with [behaviour = 2]) / denom) 3 id-expressed
  set id-expressed fput precision ((count temp-behaviours-expressed with [behaviour = 1]) / denom) 3 id-expressed
  set id-expressed fput precision ((count temp-behaviours-expressed with [behaviour = 0]) / denom) 3 id-expressed

  set id-error-behaviour compare-standards id-expressed id-standard
end

to set-id-error-social

  ;calculates difference between agents' id-standard and mean-behaviours

  set last-id-error-social id-error-social
  set id-error-social 0
  set id-error-social compare-standards id-standard id-expressed-social
end

to-report compare-standards [standardA standardB]

  ;calculates cumulative difference between elements in standardA and standardB

  let counter 0
  let diffc 0
   while[counter < (length standardA)]
   [
     set diffc diffc + sqrt(((item counter standardA) - (item counter standardB)) ^ 2)
     set counter counter + 1
   ]

   set diffc precision diffc 2

   report diffc
end

to set-id-change

  ;update id-standard to better match expressed-behaviour or mean (social) behaviours

  let unit-change 0.01 ;amount to change id-standard by

  let check-social false
  if(behaviour-change = true or id-error-behaviour <= unit-change) [ set check-social true ] ;if behaviour changes this timestep or my id-error-behaviour is minimised) match id-standard to mean behaviours

  let temp-behaviours-expressed patch-set behaviours-expressed


  let current-min-standard id-standard       ;current-min-standard holds the standard that currently minimises standard-error
  let dummy-standard id-standard             ;dummy-standard holds the current standard being checked

  let standard-error 0
  ifelse(check-social = true)
  [ set standard-error compare-standards id-expressed-social id-standard ] ;check social
  [ set standard-error compare-standards id-expressed id-standard  ]   ;check personal

  let min-standard-error standard-error                   ;standard-error is the error for current-min-standard


  ;for info on how check-order is used, see comments in set-ideal-behaviour
  let check-order [ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ] ;total number of 2by2 combinations for four options (P C D A)
  set check-order shuffle check-order
  let divisor sqrt(length check-order) ;needed to set i and j below

  ;loop to find change in id-standard that minimises ere
  ;two loops (mirrored changes) as each behaviour could be increased or decreased
  let this-loop 0
  while[this-loop < 2]
  [
    foreach(check-order)
    [
      let i int(? / divisor)
      if((remainder ? divisor) = 0 ) [ set i i - 1 ]

      let j (remainder ? divisor) - 1
      if((remainder ? divisor) = 0) [ set j divisor - 1 ]

       if(i != j)
       [
          let i-value 0
          let j-value 0

          ;first loop i is +ve change and j -ve
          if(this-loop = 0)
          [
            set i-value item i id-standard + unit-change
            set j-value item j id-standard - unit-change
          ]

          ;second loop i is -ve change and j +ve
          if(this-loop = 1)
          [
            set i-value item i id-standard - unit-change
            set j-value item j id-standard + unit-change
          ]

          set i-value precision i-value 2
          set j-value precision j-value 2

          if(i-value >= 0 and j-value >= 0)
          [

            set dummy-standard replace-item i dummy-standard i-value
            set dummy-standard replace-item j dummy-standard j-value

            ifelse(check-social = true)
            [ set standard-error compare-standards id-expressed-social dummy-standard ]
            [ set standard-error compare-standards id-expressed dummy-standard  ]

            if(swap-errors? standard-error min-standard-error)
            [
              set current-min-standard dummy-standard
              set min-standard-error standard-error
            ]
          ]
          set dummy-standard id-standard
       ]
    ]

    set this-loop this-loop + 1
  ]

  set id-standard current-min-standard
end

to-report swap-errors? [errorA errorB]

  ;report true if errorA < errorB, else report false

  let swap false

  if(errorA < errorB) [ set swap true ]

  report swap
end

to set-id-expressed-social

  ;calculates mean expressed-behaviour standard for all agents

  set id-expressed-social [ 0 0 0 0 ]

  let tot-expressed-behaviours 0 ;total of all turtle expressed behaviours
  let temp-tot-behaviours [ 0 0 0 0 ]

  ifelse(any? out-link-neighbors)
  [
    ask out-link-neighbors
    [
      set behaviours-expressed patch-set behaviours-expressed

      let tempP count behaviours-expressed with [behaviour = 0]
      let tempD count behaviours-expressed with [behaviour = 1]
      let tempC count behaviours-expressed with [behaviour = 2]
      let tempA count behaviours-expressed with [behaviour != nobody ] - minimum-behaviours ;A is given by the number of patches with an expressed behaviour > 10

      set tot-expressed-behaviours tot-expressed-behaviours + tempP + tempD + tempC + tempA

      set tempP tempP + item 0 temp-tot-behaviours
      set tempD tempD + item 1 temp-tot-behaviours
      set tempC tempC + item 2 temp-tot-behaviours
      set tempA tempA + item 3 temp-tot-behaviours

      set temp-tot-behaviours fput tempA temp-tot-behaviours
      set temp-tot-behaviours fput tempC temp-tot-behaviours
      set temp-tot-behaviours fput tempD temp-tot-behaviours
      set temp-tot-behaviours fput tempP temp-tot-behaviours
    ]

    set id-expressed-social replace-item 0 id-expressed-social ((item 0 temp-tot-behaviours) / tot-expressed-behaviours)
    set id-expressed-social replace-item 1 id-expressed-social ((item 1 temp-tot-behaviours) / tot-expressed-behaviours)
    set id-expressed-social replace-item 2 id-expressed-social ((item 2 temp-tot-behaviours) / tot-expressed-behaviours)
    set id-expressed-social replace-item 3 id-expressed-social ((item 3 temp-tot-behaviours) / tot-expressed-behaviours)

    set id-expressed-social replace-item 0 id-expressed-social precision (item 0 id-expressed-social) 2
    set id-expressed-social replace-item 1 id-expressed-social precision (item 1 id-expressed-social) 2
    set id-expressed-social replace-item 2 id-expressed-social precision (item 2 id-expressed-social) 2
    set id-expressed-social replace-item 3 id-expressed-social precision (item 3 id-expressed-social) 2
  ]
  [ set id-expressed-social id-standard ]
end

to draw-behaviours-boundaries

  ;draws a line around each turtles's behaviours-expressed patches
  ;code after David O'Sullivan

  create-line-painters 1 [ ;; make the global line-drawer turtle
    set color black
    set hidden? true
    set pen-size 1
    set lp_who 1
  ]

  set line-drawer line-painters with [lp_who = 1 ]

  ask patches [
    ask neighbors4 with [agent-who != [agent-who] of myself] [
      draw-edge-between self myself
    ]
  ]
  ask line-painters [ die ]
end

to draw-edge-between [p1 p2]

  ;drawing the farm boundary - code after David O'Sullivan

  ask line-drawer
  [
    move-to p1
    face p2
    fd 0.5
    lt 90
    fd 0.4999
    rt 180
    pd
    fd 0.99998
    pu
  ]
end

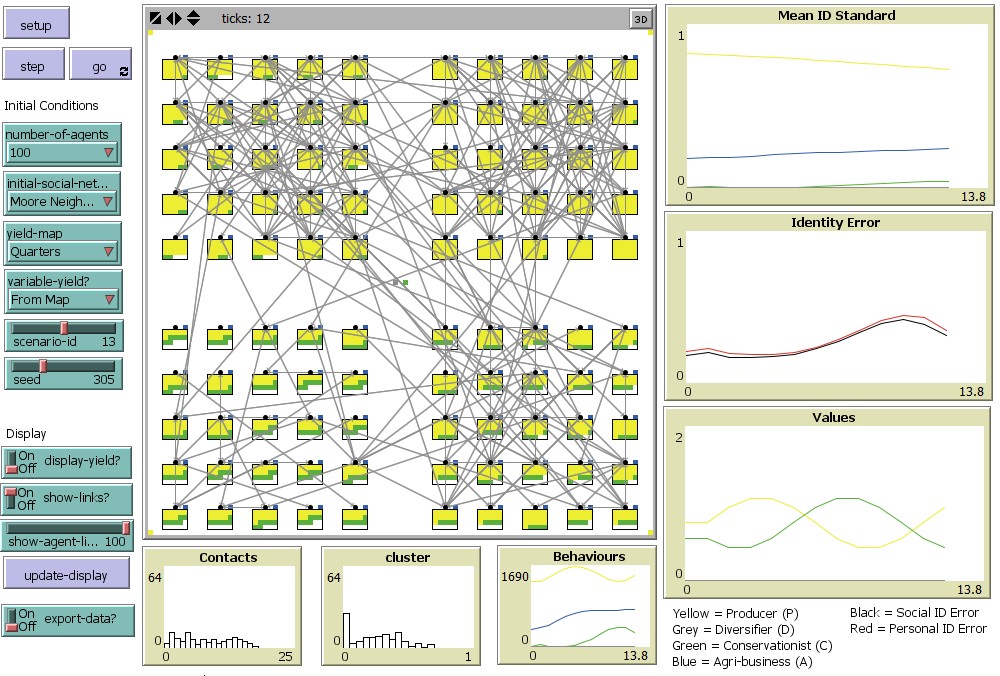

to do-plots

  ;update plots

  set-current-plot "Behaviours"

  set-current-plot-pen "Producer"
  let p 0
  ask turtles [ set p p + (count behaviours-expressed with [behaviour = 0]) ]
  plot p

  set-current-plot-pen "Conservationist"
  let c 0
  ask turtles [ set c c + (count behaviours-expressed with [behaviour = 2]) ]
  plot c

  set-current-plot-pen "Diversifier"
  let d 0
  ask turtles [ set d d + (count behaviours-expressed with [behaviour = 1]) ]
  plot d

  set-current-plot-pen "Agri-business"
  let a 0
  ask turtles [ set a a + ((count behaviours-expressed with [ behaviour != nobody ] ) - minimum-behaviours ) ]
  plot a



  set-current-plot "Mean ID Standard"
  set-current-plot-pen "Producer"
  set p 0
  ask turtles [ set p p + item 0 id-standard ]
  plot p / (count turtles)

  set-current-plot-pen "Diversifier"
  set d 0
  ask turtles [ set d d + item 1 id-standard ]
  plot d / (count turtles)

  set-current-plot-pen "Conservationist"
  set c 0
  ask turtles [ set c c + item 2 id-standard ]
  plot c / (count turtles)

  set-current-plot-pen "Agri-business"
  set a 0
  ask turtles [ set a a + item 3 id-standard ]
  plot a / (count turtles)

  ;plot deprecated
  ;set-current-plot "Count Max ID Standard"
  ;set-current-plot-pen "Producer"
  ;set p 0
  ;ask turtles
  ;[ if(hierarchy-position 0 id-standard = 0) [ set p p + 1 ] ]
  ;plot p

  ;set-current-plot-pen "Diversifier"
  ;set d 0
  ;ask turtles [ if(hierarchy-position 1 id-standard = 0) [  set d d + 1] ]
  ;plot d

  ;set-current-plot-pen "Conservationist"
  ;set c 0
  ;ask turtles [ if(hierarchy-position 2 id-standard = 0) [ set c c + 1 ] ]
  ;plot c

  ;set-current-plot-pen "Agri-business"
  ;set a 0
  ;ask turtles [ if(hierarchy-position 3 id-standard = 0) [ set a a + 1 ] ]
  ;plot a
  ;--end plot deprecated

  set-current-plot "Identity Error"
  set-current-plot-pen "behaviour"
  let ie 0
  ask turtles [ set ie ie + id-error-behaviour ]
  set ie ie / count turtles
  plot ie
  set-current-plot-pen "social"
  set ie 0
  ask turtles [ set ie ie + id-error-social ]
  set ie ie / count turtles
  plot ie


  set-current-plot "Values"
  set-current-plot-pen "Producer"
  plot value-P
  set-current-plot-pen "Conservationist"
  plot value-C
  set-current-plot-pen "Diversifier"
  plot value-D


  set-current-plot "Contacts"
  let ccounts []
  ask turtles
  [
    set ccounts fput (count out-link-neighbors) ccounts
  ]
  histogram ccounts

  set-current-plot "cluster"
  let cc []
  ask turtles
  [
    set cc fput cluster-coefficient cc
  ]
  histogram cc
  set mean-cluster-coefficient mean cc
end

to export-turtle-data [ filename ]

  ;export all turtle data to file

  with-local-randomness ;so that runs do not differ for same seed regardless of whether data is exported
  [

    file-open filename

    if(ticks = 0)
    [
      file-print date-and-time
      file-print "Tick,Agent,id-error-behaviour,id-error-social,wealth,profit,yield,count-contacts,cluster-coeff,id-standard-P,id-standard-D,id-standard-C,id-standard-A,id-expressed-P,id-expressed-D,id-expressed-C,id-expressed-A,count-behaviours,behaviour-available-P,behaviour-available-D,behaviour-available-C,behaviour-available-A"
    ]

    ask turtles
    [
      file-type ticks
      file-type ","
      file-type who
      file-type ","
      file-type id-error-behaviour
      file-type ","
      file-type id-error-social
      file-type ","
      file-type wealth
      file-type ","
      file-type profit
      file-type ","
      file-type yield
      file-type ","
      file-type count my-out-links
      file-type ","
      file-type cluster-coefficient
      file-type ","

      foreach id-standard [ file-type precision ? 2 file-type "," ]

      foreach id-expressed [ file-type precision ? 2 file-type "," ]

      let sum-behaviours 0
      ask behaviours-expressed [ if([behaviour] of self != nobody) [set sum-behaviours sum-behaviours + 1 ] ]

      file-type sum-behaviours

      foreach behaviours-available [ file-type "," file-type ? ]

      file-print ""
    ]

    file-close
  ]
end

to check-sliders

 ;check that initial-id-standard and initial-expressed sliders sum to 1.0

  if(initial-standards = "Homogeneous" or initial-standards = "Distribution")
 [
   let sum-standards id-standard-P + id-standard-A + id-standard-D + id-standard-C
   if(sum-standards <= 0.96 or sum-standards >= 1.04) ;to avoid internal netLogo rounding where sum = 0.999999
   [
     user-message ("Sum of id-standard sliders must = 1. Please amend")
     stop
   ]
 ]

 if(initial-expressed = "Homogeneous" or initial-expressed = "Distribution")
 [
   let sum-expressed expressed-P + expressed-A + expressed-D + expressed-C
   if(sum-expressed <= 0.96 or sum-expressed >= 1.04) ;to avoid internal netLogo rounding where sum = 0.999999
   [
     user-message ("Sum of behaviours-expressed sliders must = 1. Please amend")
     stop
   ]
 ]
end

to read-behaviours-available-from-file


 ask turtles [ set behaviours-available-lists [] ]

  ;if variable in time, input file must include data for year 0!
 file-close-all

 file-open behaviours-scenario-filename

 let header file-read-line      ;read first line headers
 let counter 0

 while [not file-at-end?]
 [
   set counter 0

   while[counter < count turtles]
   [
     let turtle-id 0
     if(not b-a_uniformAgents) [ set turtle-id file-read ] ;there will be no agent id if behaviours-available are uniform for all agents

     let data-list []
     set data-list file-read

     ifelse(b-a_uniformAgents)
     [
       ask turtles
       [
         ;if data are uniform across all agents, just get this data-list (line of the input file) once and copy for all turtles
         add-available-behaviours-list data-list
       ]
     ]

     [
       ask turtle turtle-id
       [
         ;otherwise only add this data-list (line of the input file) for the appropriate agent
         add-available-behaviours-list data-list
         set counter counter + 1
       ]
     ]
   ]
 ]

 file-close

 ;at this point behaviours-available lists have been read for all timesteps, but because a stack has been used (fput) data are in reverse order
 ;remove-ticks-from-behaviours-available-lists reverses lists to they are back in order of input file (at the same time as removing ticks from the sub-lists)
 ask turtles
 [
   set behaviours-available-lists reverse-list-of-lists behaviours-available-lists true
 ]
end

to read-values-from-file

 ;if variable in time, input file must include data for year 0!
 file-close-all

 file-open values-scenario-filename

 set values-scenario-list []
 let header file-read-line      ;read first line headers

 while [not file-at-end?]
 [
   let data-list []
   set data-list file-read
   set values-scenario-list fput data-list values-scenario-list
 ]

 file-close

 set values-scenario-list reverse-list-of-lists values-scenario-list true

 print values-scenario-list
end

to update-values-from-file

  ;get values from list of values initially read during setup

  let temp-values first values-scenario-list

  set value-P item 0 temp-values
  set value-D item 1 temp-values
  set value-C item 2 temp-values

  set values-scenario-list but-first values-scenario-list ;remove these value ready for next timestep
end

to add-available-behaviours-list [ data-list ]

  ;get available behaviours from list (with check that tick values are sequential)

  if(not empty? behaviours-available-lists) ;if not first addition, check data is for subsequent tick
  [
    let this-tick first data-list

    let check-list first behaviours-available-lists
    let check-tick first check-list

    if(this-tick - check-tick != 1)
    [
      ifelse(b-a_uniformAgents)
      [ user-message (word "Error in behaviours-available file: ticks not in sequence (uniformAgents) at tick" this-tick) ]
      [ user-message (word "Error in behaviours-available file: ticks not in sequence for turtle " who " at tick" this-tick) ]
      stop
    ]
  ]

  ;push the new list
  set behaviours-available-lists fput data-list behaviours-available-lists
end

to-report reverse-list-of-lists [ list-of-lists remove-first-item ]

  ;this function takes a list of lists, optionally removes the first item from each sub-list, and reverses orders of the lists
  ;e.g. when remove-first-item = true input: [[ 1 2 3 4 ] [ 4 3 2 1 ] [ 5 6 7 8 ]] output: [[ 6 7 8 ] [ 3 2 1 ] [ 2 3 4 ]]
  ;e.g. when remove-first-item = false input: [[ 1 2 3 4 ] [ 4 3 2 1 ] [ 5 6 7 8 ]] output: [[ 5 6 7 8 ] [ 4 3 2 1 ] [ 1 2 3 4 ]]

  let temp-lists []  ;temp list of lists (will replace original with this list after all ticks have been removed)

  foreach(list-of-lists)
  [
    let this-list ?  ;get the list (which includes tick in position 0)

    if(remove-first-item = true) [ set this-list but-first this-list ]  ;pop first element (e.g. remove the tick)

    set temp-lists fput this-list temp-lists  ;add (push) the new list with tick removed to temp list of list
  ]

  report temp-lists
end

to set-year-behaviours-available

  ;if behaviours available are specified by file, this procedure gets the behaviours available for this timestep

  if(empty? behaviours-available-lists)
  [
    user-message word "Error in behaviours-available file: no data for this tick (turtle" who
    stop
  ]

  set behaviours-available first behaviours-available-lists
  set behaviours-available-lists but-first behaviours-available-lists ;once we have read the data for this timestep, remove from the list
end

to check-behaviours-available

  ;checks logic of behaviours-available switches. see user-message below

  if(scenario-from-file? = true and use-values? = false)
  [
    if(b-a_uniformTime and b-a_uniformAgents) [ user-message "Both b-a_uniformTime and b-a_uniformAgents cannot be 'on'." ]
    stop
  ]
end

to set-random-behaviours

  ;randomly distribute available behaviours between turtles

  ask turtles [ set behaviours-available [ 0 0 0 0 ] ]

  let P-agents (available-P * count turtles)
  let D-agents (available-D * count turtles)
  let C-agents (available-C * count turtles)
  let A-agents (available-A * count turtles)

  ask n-of P-agents turtles [ set behaviours-available replace-item 0 behaviours-available 1 ]
  ask n-of D-agents turtles [ set behaviours-available replace-item 1 behaviours-available 1 ]
  ask n-of C-agents turtles [ set behaviours-available replace-item 2 behaviours-available 1 ]
  ask n-of A-agents turtles [ set behaviours-available replace-item 3 behaviours-available 1 ]
end

to calc-network-density

  ;calculates network density (proportion of links given maximum number possible)

  set network-density 0

  let all-links 0

  ask turtles [ set all-links all-links + count out-link-neighbors ]

  let max-links count turtles * (count turtles - 1)

  set network-density all-links / max-links
end

to calc-cluster-coefficient

  ;calculates cluster coefficient for a turtle
  ;method after that described in Hamill and Gilbert (2009) http://jasss.soc.surrey.ac.uk/12/2/3.html

  let cc []

  let contacts-list sort out-link-neighbors

  ifelse(any? out-link-neighbors)
  [
    ask out-link-neighbors
    [
      let c-contacts-list sort out-link-neighbors
      let overlap count-duplicates contacts-list c-contacts-list

      ifelse(overlap > 0)
      [ set cc fput (overlap / ((length contacts-list) - 1)) cc ]
      [ set cc fput 0 cc ]
    ]

    set cluster-coefficient precision mean cc 2
  ]
  [ set cluster-coefficient 0 ]
end

to-report count-duplicates [ listA listB ]

  ;report number of time a value in listA appears in listB

  let duplicates 0

  foreach listA
  [
    if(member? ? listB) [ set duplicates duplicates + 1 ]
  ]

  report duplicates
end

to setup-meeting-points

  ;set appropriate patches to meeting points and change colour of patch

  if(meeting-point?)
  [
    ifelse(multiple-meeting-points?)
    [
      let tleft patches with [ pxcor = min-pxcor and pycor = max-pycor]
      let tright patches with [ pxcor = max-pxcor and pycor = max-pycor]
      let bleft patches with [ pxcor = min-pxcor and pycor = min-pycor]
      let bright patches with [ pxcor = max-pxcor and pycor = min-pycor]

      set production-meeting-points (patch-set tleft tright bleft bright)
      ask production-meeting-points [ set pcolor yellow ]
    ]

    [
      set production-meeting-points patch 0 0
      ask production-meeting-points [ set pcolor yellow ]
    ]

    set diversification-meeting-point patch -1 0
    ask diversification-meeting-point [ set pcolor grey ]

    set conservation-meeting-point patch 1 0
    ask conservation-meeting-point [ set pcolor green ]
  ]
end

to remove-contacts

  ;remove links between agents if your most salient behaviour (in id-standard) differs from their top behaviour expressed (but NOT if you also have that behaviour as top expressed)

  let most-similar nobody

  if(any? out-link-neighbors)
  [
    let idP hierarchy-position 0 id-standard
    let idD hierarchy-position 1 id-standard
    let idC hierarchy-position 2 id-standard
    let idA hierarchy-position 3 id-standard

    let eP hierarchy-position 0 id-expressed
    let eD hierarchy-position 1 id-expressed
    let eC hierarchy-position 2 id-expressed
    let eA hierarchy-position 3 id-expressed

    let kill false

    ask out-link-neighbors
    [
        let P hierarchy-position 0 id-expressed
        let D hierarchy-position 1 id-expressed
        let C hierarchy-position 2 id-expressed
        let A hierarchy-position 3 id-expressed

        if(idP <= 0 or P <= 0) ;if P is in top position of either agent's hierarchy, check it is in same position (don't kill if lower salience sub-identities do not have identical rank)
        [
          if(idP != P and eP != 0) [ set kill true ]
        ]

        if(idD <= 0 or D <= 0)
        [
          if(idD != D and eD != 0) [ set kill true ]
        ]

        if(idC <= 0 or C <= 0)
        [
          if(idC != C and eC != 0) [ set kill true ]
        ]

        if(idA <= 0 or A <= 0)
        [
          if(idA != A and eA != 0) [ set kill true ]
        ]


        if(can-ignore-neighbours? = false ) ;do not kill direct (in space) neighbours
        [
          if(not empty? neighbours-list)
          [
            if(member? [who] of myself neighbours-list) [ set kill false ]
          ]
        ]


        if(kill = true)
        [
          if(in-link-from myself != nobody) [ ask in-link-from myself [die] ]
          if(out-link-to myself != nobody) [ ask out-link-to myself [die] ]
        ]
    ]
  ]
end

to setup-yield

  ;sets patch-yield in setup (later is used to set turtle yield when variable-yield? = "From Map")

  ifelse(variable-yield? = "From Map")
  [
    if (yield-map = "Gradient") [ask patches [ set patch-yield 0.75 + ( pxcor / (max-pxcor * 4) ) ]] ;gradient of yield from low to high (left to right) with mean 0.75
    if (yield-map = "Uniform") [ask patches [ set patch-yield 0.75 ]] ;all patches have patch-yield = 0.75
    if (yield-map = "Quarters")  ;split world into four quarters - all patches within a quarter have uniform patch-yield
    [
      ask patches
      [
        if (pxcor <= 0 and pycor <= 0) [ set patch-yield 0.5 ]
        if (pxcor > 0 and pycor <= 0) [ set patch-yield 0.66 ]
        if (pxcor <= 0 and pycor > 0) [ set patch-yield 0.83 ]
        if (pxcor > 0 and pycor > 0) [ set patch-yield 1 ]
      ]
    ]

    if (yield-map = "Grid")  ;split world into 10 by 10 grid of patches - patches within each grid cell have uniform patch-yield with one of four values
    [
      let square (world-width - 1) / 10
      let min-x min-pxcor
      let min-y min-pycor
      let max-x min-x + square
      let max-y min-y + square

      let counter 0

      ;loop thtough grid setting patch-yield
      while[min-x < max-pxcor]
      [
        while[min-y < max-pycor]
        [
          ask patches with [ pxcor >= min-x and pxcor < max-x and pycor >= min-y and pycor < max-y]
          [
            if(counter = 0) [ set patch-yield 0.5 ]
            if(counter = 1) [ set patch-yield 0.66 ]
            if(counter = 2) [ set patch-yield 0.83 ]
            if(counter = 3) [ set patch-yield 1 ]
          ]

          set counter counter + 1
          if(counter = 4) [ set counter 0 ]

          set min-y max-y
          set max-y min-y + square
        ]

        set min-y min-pycor
        set max-y min-y + square

        set min-x max-x
        set max-x min-x + square
      ]
    ]

  ]

  [ask patches [ set patch-yield 1 ]] ;if turtles do not set their yield from the map, set patch-yield for all patches to 1
end

to re-display

  ;reset the display of the world

  ;show patch yield or behaviour?
  ifelse(display-yield? = false)
  [
    ask patches [ set pcolor white ]
    ask turtles [ display-behaviours st ]

    if(meeting-point? = true)
    [
      ask production-meeting-points [ set pcolor yellow ]
      ask diversification-meeting-point [ set pcolor grey ]
      ask conservation-meeting-point [ set pcolor green ]
    ]

    ;show links?
    ifelse(show-links? = false)
    [ ask links [ set hidden? true ] ]
    [
      ifelse(show-agent-links < number-of-agents) ;if show-agent-links slider is set to greater than number of turtles, all links are shown, otherwise just the specific turtle
      [
        ask links [ set hidden? true ]
        ask turtles with [ who = show-agent-links ] [ ask my-out-links [ set hidden? false ] ]
      ]
      [ ask links [ set hidden? false ] ]

    ]
  ]
  [
    ask turtles
    [
      ht
      ask links [ set hidden? true ]
    ]

    ask patches [ set pcolor scale-color yellow patch-yield 0.5 1 ]
  ]
end

to setup-filenames

  ;use next-index procedure to check if file exists

  let prefix "IdentityChange_AgentData"
  let suffix ".csv"
  let index next-index prefix suffix
  set turtle-output-filename (word prefix index suffix)

  set prefix "ValuesScenario"
  set suffix ".txt"
  set values-scenario-filename (word prefix scenario-id suffix)

  set prefix "IdentityChange_Interface"
  set suffix ".png"
  set index next-index prefix suffix
  set interface-filename (word prefix index suffix)

  if(b-a_uniformAgents) [ set prefix "behaviours-available_uniformAgents"]
  if(b-a_uniformTime) [ set prefix "behaviours-available_uniformTime" ]
  if(not b-a_uniformTime and not b-a_uniformAgents) [ set prefix "behaviours-available_all" ]

  set suffix ".txt"
  set behaviours-scenario-filename (word prefix scenario-id suffix)
end

to-report next-index [ prefix suffix ]

  ;find the first value that can be used to create a unique filename using prefic and suffix
  ;after James Steiner (I believe)

  let index 0
  let filename (word prefix index suffix )
  while [ file-exists? filename ]
  [
    set index index + 1
    set filename (word prefix index suffix )
  ]
  report index
end
