Supply Chain

Supply Chain preview image

1 collaborator

Gil Alvaro Gil (Author)

Tags

logistics

Tagged by Alvaro Gil over 12 years ago

supply chain

Tagged by Alvaro Gil over 12 years ago

牛鞭效应,

Tagged by 琴 冷 11 months ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0 • Viewed 20547 times • Downloaded 1142 times • Run 0 times
Download the 'Supply Chain' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Visit

http://aquaponicscenter.blogspot.com/

Posted over 9 years ago

Has anyone gotten this model to work??? (Question)

I have tried several times from multiple machines to download and run this model. Every time that I try it, I get an unspecified error when I attempt to extract the files from zip. I have also tried running it in NetLogo web, also without any luck. Does anyone have any suggestions???????? Thank you!

Posted over 6 years ago

Where to download the model

Hello, Thanks for your comment. The model was developed in NetLogo 4.2, a very old version which I think needs some updates to run with the current version of the software. You can download the model with a presentation explaining the model functionality and how to build it step by step on the following link http://agiltools.com/Resources/Supply_Chain_Step_by_Step.zip The documentation is in French though, it was made as part of a lecture class at the Montreal University back in 2012. My email is also there, you can write to me directly if you have any further questions. Good luck

Posted over 6 years ago

I have a question (Question)

Hello Thanks for sharing your awesome model Currently, I'm trying to learn Netlogo I think your model is really nice to study but it is bit complicated for me. So if you have a basic model that you used for this, can you share for me?? I want to develop from the bottom so that I can learn Or can you let me know that which sample model you used (within model library) and I think I want to build up this model with data flow. So if you have any advices or any model might be helpful for me please recommend or give me any advises it will be really helpful Thank you so much! here is my email : sengwun2@naver.com

Posted over 5 years ago

FACT

why error FACT

Posted 11 months ago

FACT

why error FACT

Posted 11 months ago

about

why error code when i copy and past to net logo?

Posted 11 months ago

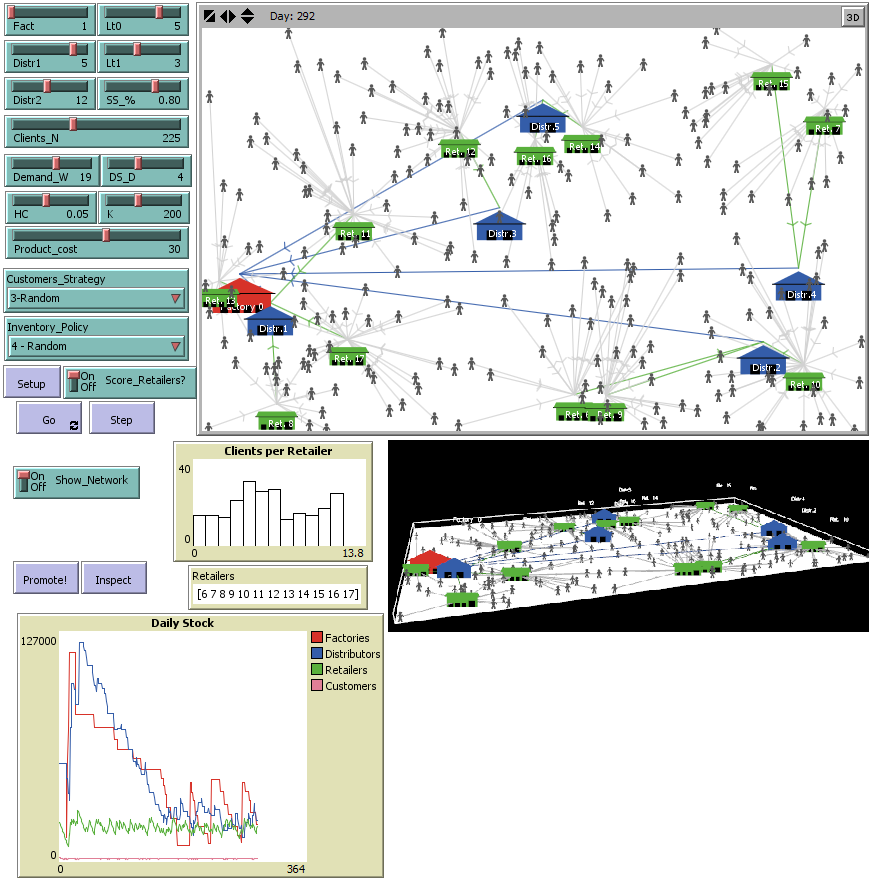

Click to Run Model

extensions [
  matrix
  table]

globals [
  safety_values
  watching
  promotion
  stocks_h
  costs_h
  ret_list]

breed [factories factory]
breed [distributors distributor]
breed [retailers retailer]
breed [customers customer]

turtles-own [demand stock strategy]

Factories-own [
  production_rate
  reorder_point
  orders
  available_stock
  clients
  daily_sales
  sales
  lost_sales
  forecast
  holding_cost
  order_cost
  total_cost
]

distributors-own [
  EOQ
  next_review
  reorder_point
  orders
  available_stock
  suppliers
  supplier_score
  supplier0
  clients
  daily_sales
  sales
  lost_sales
  forecast
  placed_orders
  holding_cost
  order_cost
  total_cost
]

retailers-own [
  EOQ
  next_review
  reorder_point
  suppliers
  supplier_score
  supplier0
  clients
  daily_sales
  sales
  lost_sales
  forecast
  placed_orders
  holding_cost
  order_cost
  total_cost
]

customers-own [
  next_review
  daily
  suppliers
  supplier_score
  supplier0
]

to setup
  ;; (for this model to work with NetLogo's new plotting features,
  ;; __clear-all-and-reset-ticks should be replaced with clear-all at
  ;; the beginning of your setup procedure and reset-ticks at the end
  ;; of the procedure.)
  __clear-all-and-reset-ticks
  ask patches [set pcolor white]
  set promotion [0 0 0]          ;Retailer 1, Impact 2, Until 3
  set stocks_h [] ;Customer, Retailer, Distributor, Factory
  set costs_h []  ;Retailer, Distributor, Factory
  set safety_values table:make
  table:put safety_values 0.50 0
  table:put safety_values 0.55 0.125661347
  table:put safety_values 0.60 0.253347103
  table:put safety_values 0.65 0.385320466
  table:put safety_values 0.70 0.524400513
  table:put safety_values 0.75 0.67448975
  table:put safety_values 0.80 0.841621234
  table:put safety_values 0.85 1.036433389
  table:put safety_values 0.90 1.281551566
  table:put safety_values 0.95 1.644853627

  create-Factories Fact [
   set size 6
   set color red
   set label (word "Factory " [who] of self "     ")
   set orders []
   let s read-from-string first(Inventory_Policy)
   ifelse s = 4
   [set strategy (random 3) + 1]
   [set strategy s]
  ]

  create-distributors Distr1 [
   set size 5
   set color blue
   set suppliers []
   set supplier_score []
   set orders []
   set placed_orders []
   set label (word "Distr." [who] of self "     ")
   let s read-from-string first(Inventory_Policy)
   ifelse s = 4
   [set strategy (random 3) + 1]
   [set strategy s]
  ]

  create-retailers Distr2 [
   set size 4
   set color green
   set suppliers []
   set supplier_score []
   set placed_orders []
   set label (word "Ret. " [who] of self "   ")
   let s read-from-string first(Inventory_Policy)
   ifelse s = 4
   [set strategy (random 3) + 1]
   [set strategy s]
  ]

  ask turtles with [breed != customers][
    set daily_sales []
    set clients []
    set sales []
    set lost_sales []
    set forecast []
    set holding_cost []
    set order_cost []
    set total_cost []]

  create-customers Clients_N [
   set size 1
   set color 3
   set suppliers []
   set supplier_score []
   set demand round(random-normal Demand_W DS_D)
   set daily round(demand / 7)
   let s read-from-string first(Customers_Strategy)
   ifelse s = 3
   [set strategy (random 2) + 1]
   [set strategy s]
  ]

  set-default-shape Factories "dist0"
  set-default-shape distributors "dist1"
  set-default-shape retailers "dist2"
  set-default-shape customers "person"
  ask turtles [find_patch]
  find_nearest
  update_clients 0
  update_market
  update_clients 0
  setup_parameters
  create_network
  update_plots
end

to go
  send_products
  buy_products
  main_sequence
  update_clients 1
  create_network
  update_plots
  purge
  evaluate_results
  print_watch
  tick                 ;Next Day
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;; SETUP SUBROUTINES ;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to find_patch
  setxy random-xcor random-ycor
  while [any? other turtles-here]
      [find_patch]                 ; keeps running until each patron is alone on patch
end

to find_nearest
  ask turtles with [breed != factories]
  [let d []
   if breed = customers [set d sort([who] of retailers)]
   if breed = retailers [set d sort([who] of distributors) ]
   if breed = distributors [set d sort([who] of factories) ]
   foreach d
     [let temp2 []
       set temp2 lput(?) temp2
       set temp2 lput(distance turtle ?) temp2
       set suppliers lput temp2 suppliers]
   set suppliers sort-by [last ?1 < last ?2] suppliers
   set supplier_score map [int(last ?) + int(((last ?) - int(last ?)) * 10) / 10] suppliers]
end

to update_clients [flag]
  ifelse flag = 0
  [ask turtles with [breed != factories] [
    let m min(supplier_score)
    let p position m supplier_score
    set supplier0 first(item p suppliers)]
  ask turtles with [breed != customers] [
    let n [who] of self
    set clients sort([who] of turtles with [(breed = retailers or breed = distributors or breed = customers) and supplier0 = n])]
  ask turtles with [breed = distributors or breed = factories] [
    foreach clients [set orders lput [0 0] orders]]]
  [ask customers [
    let m min(supplier_score)
    let p position m supplier_score
    set supplier0 first(item p suppliers)]
  ask retailers [
    let n [who] of self
    set clients sort([who] of turtles with [(breed = retailers or breed = distributors or breed = customers) and supplier0 = n])]]
end

to create_promotion
  ;Simple method: Increase de demand in some specific retailer choose for the user
  let list1 read-from-string user-input "Create a promotion [a b c] (retailer a, impact b (1 to 10), during c periods"
  ifelse is-list? list1 and length(list1) = 3
  [let p item 0 list1
  let i item 1 list1
  let c (item 2 list1) + ticks
  let l []
  set l lput(p) l
  set l lput(i) l
  set l lput(c) l
  set promotion l
  user-message (word "Today a promotion will occur at store " p)
  if Score_Retailers? = true
  [ask customers [let list2 map [first ?] suppliers
    let m position p list2
    set supplier_score (replace-item m supplier_score (item m supplier_score - (random-float item 1 list1)))]]
  ]
  [user-message (word "The array doen't have a valid format, pleas try again")]
end

to create_network
  ask links [die]
  ifelse Show_Network = true [
    ask customers [
      if supplier0 != nobody
      [create-link-to retailer supplier0
      [set color gray + 3]]]
    ask retailers [
      create-link-to distributor supplier0
      [set color green]]
    ask distributors [
      create-link-to factory supplier0
      [set color blue]]
    set ret_list sort([who] of retailers)
    let dd []
    ;let ddd sort(retailers)
    foreach ret_list
    [set dd lput(count(links with [end2 = retailer ?])) dd]
    set-current-plot "Clients per Retailer"
    clear-plot
    foreach dd
    [plot ?]]
  [ask links [die]
    set-current-plot "Clients per Retailer"
    clear-plot]
end

to setup_parameters
  ask customers [
    set stock random demand
  ]
  ask retailers [
    set stock round(sum([demand] of customers) / count(retailers)) * 5      ;All agents of the same type starts with the same stock
    set demand mean([daily] of customers) * length(clients) * 1
  ]
  ask distributors [
    set stock round(sum([stock] of retailers)) * .5    ;All agents of the same type starts with the same stock
    set demand mean([demand] of retailers) * length(clients) * 1
  ]
  ask Factories [
    set stock round(sum([stock] of distributors))
    set production_rate round(sum([demand] of customers) * 10)
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;; GO SUBROUTINES ;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to update_market
  ask turtles with [breed != customers and clients = []] [die]
end

to send_products
  ask turtles with [breed = distributors or breed = factories]
  [let list1 map [last ?] orders
   let list2 filter [? = ticks] list1
   if length(list2) > 0 and max(list2) > 0
   [let attending filter [last ? = ticks] orders
     set list2 []
     let list3 []
     foreach attending [
       set list2 lput(item (position ? orders) clients) list2
       set list3 lput(first(item(position ? orders) orders)) list3]
     let i 0
     while [i < length(list2)] [
     ask turtle (item i list2) [
       set stock (stock + item i list3)]
     set i i + 1]
     set i 0
     while [i < length(orders)]
     [if last(item i orders) = ticks
       [set orders replace-item i orders [0 0]]
       set i i + 1]]
  ]
end

to buy_products
  ;Customers go shopping according to their demand and their stock
  let list1 []
  ask turtles with [breed = retailers or breed = distributors or breed = factories ][
    set daily_sales []
    set lost_sales []]
  ask customers [
    let dem 0
    ifelse strategy = 1
    [set dem daily]
    [set dem round(daily * 4)]
    if promotion != [0 0 0] and member? who [clients] of retailer supplier0
    [set dem round(dem * random-float (item 1 promotion))]
    ifelse stock < dem and next_review = ticks [
        let agent [who] of self
        let d (dem + (dem - stock))
        ifelse [stock] of retailer (supplier0) >= d
        [ask retailer (supplier0) [
          set stock stock - d
          set daily_sales lput d daily_sales
          set lost_sales lput 0 lost_sales]
        let dd []
        set dd lput agent dd
        set dd lput d dd
        set list1 lput dd list1
        set stock stock - daily + d
        if Score_Retailers? = true
        [score_supplier who -0.01]]
        [ask retailer (supplier0) [set lost_sales lput dem lost_sales]
         if Score_Retailers? = true
         [score_supplier who 2 ]]
        ifelse strategy = 2
        [set next_review ticks + 3]
        [set next_review ticks + 1]]
      [ifelse stock - dem >= 0
        [set stock stock - dem]
        [set stock 0]
       set next_review ticks + 1 ]]
  ask retailers [
    update_sales
    if strategy != 3
    [set next_review ticks + 1]]
end

to update_sales
  let es sum(daily_sales)
  let ls sum(lost_sales)
  let l []
  set l lput es l
  set l lput ls l
  set sales lput l sales
end

to main_sequence
  ask retailers [
    update_forecast
    place_orders
    update_costs]
  ask distributors [
    update_sales
    update_forecast
    place_orders
    update_costs]
  ask factories [
    update_sales
    if stock < reorder_point
    [set stock stock + production_rate]
    update_forecast
    update_costs]
  ask customers [update_demand]
end

to update_forecast
  ;Retailers, Distributors and Factories update their expectations
  let forecasting []
  set forecast []
  let temp_demand 0
  if length(sales) > 0 [set temp_demand map [sum(?)] sales]
  let ds 0
  ifelse (length(sales) > 2) and (max(temp_demand) != 0)
  [set forecast matrix:forecast-linear-growth (temp_demand)
    set ds standard-deviation temp_demand]
  [set forecast lput(round(demand / 7)) forecast
    set forecast lput(round(demand / 7)) forecast
    set forecast lput(0) forecast
    set forecast lput(0) forecast]
  let b item 1 forecast
  let a item 2 forecast
  let t length(sales)
  let i 1
  while [i <= 7] [
    set forecasting lput(t * a + b) forecasting
    set i i + 1
    set t t + 1]
  set demand round(sum(forecasting))
  if demand < 0 [set demand 0]
  let dailyd demand / 7
  let Lead_Time Lt0
  if breed = retailers [set Lead_Time Lt1]
  let z table:get safety_values SS_%
  if breed != factories
  [set EOQ round(sqrt(2 * demand * 52 * K / (HC * Product_cost)))]
  set reorder_point round(dailyd * Lead_Time + z * ds)
end

to print_watch
  if watching != 0
  [
   show (word "At the period " ticks " the agent " watching " update its expectations :")
   if ([breed] of turtle watching != customers) [
     show (word "Sales " [sales] of turtle watching)
     show (word "Forecast " [forecast] of turtle watching)]
   show (word "Demand " [demand] of turtle watching)
   if ([breed] of turtle watching != customers and [breed] of turtle watching != factories) [
     show (word "EOQ " [EOQ]  of turtle watching)
     show (word "Reorder Point " [reorder_point] of turtle watching)]
   show (word "Stock " [stock] of turtle watching)
  ]
end

to follow_someone
  ifelse watching = 0
  [let l read-from-string user-input "What agent do you want to inspect?"
    set watching l
  watch turtle watching
  inspect turtle watching]
  [set watching 0
    reset-perspective]
end

to place_orders
  ;Retailers and Distributors place orders according to their stock and forecasting
  if stock <= reorder_point [
    let p position [who] of self ([clients] of turtle supplier0)
    let actual_order first(item p ([orders] of turtle supplier0))
    if actual_order = 0 [
      let comande 0
      let lead_time Lt0
      if breed = retailers
      [set lead_time Lt1]
      ifelse strategy = 1
      [set comande round(EOQ - stock)]
      [set comande round(EOQ + (demand / 7) * lead_time)]
      let disp 0
      ask turtle supplier0 [
        let delivery ticks + lead_time
        let g []
        let ll 0
        ifelse stock > comande
        [set disp comande]
        [set disp stock
          set ll comande - disp]
        set g lput disp g
        set g lput delivery g
        set orders replace-item p orders g
        set stock stock - disp
        set daily_sales lput(disp) daily_sales
        set lost_sales lput(ll) lost_sales
      ]
      set placed_orders lput(disp) placed_orders]
  ]
end

to update_demand
  ifelse promotion = [0 0 0]
  [set demand round(random-normal Demand_W DS_D)
  set daily round(demand / 7)]
  [let p item 2 promotion
    if ticks = p [set promotion [0 0 0]]
  ]
end

to update_costs
  set holding_cost lput (HC * stock * Product_cost) holding_cost
  ifelse breed != factories
  [if (length(placed_orders) = 0) OR (length(placed_orders) != length(holding_cost))
  [set placed_orders lput 0 placed_orders]
  ifelse last(placed_orders) = 0
  [set order_cost lput 0 order_cost]
  [set order_cost lput K order_cost]
  set total_cost lput (last(order_cost) + last(holding_cost)) total_cost]
  [set total_cost lput (last(holding_cost)) total_cost]
end

to evaluate_results
  ;Collect statistics at the end of each period
  let l []
  ifelse first(promotion) = 0
  [set l lput (word ticks "-Reg") l]
  [set l lput (word ticks "-P-" item 0 promotion "-" item 1 promotion) l]
  set l lput(sum([stock] of customers)) l
  set l lput(sum([stock] of retailers)) l
  set l lput(sum([stock] of distributors)) l
  set l lput(sum([stock] of factories)) l
  set stocks_h l
  set l []
  let s 0
  foreach ([total_cost] of retailers) [set s s + (last(?))]
  set l lput(s) l
  set s 0
  foreach ([total_cost] of distributors) [set s s + (last(?))]
  set l lput(s) l
  set s 0
  foreach ([total_cost] of factories) [set s s + (last(?))]
  set l lput(s) l
  set costs_h l
end

to purge
  ask turtles with [breed != customers]
  [if length(sales) > 100
    [let l length(sales)
      set sales sublist sales (l - 100) l
      ]]
end

to score_supplier [a b]
 ;agent A, score B
 ask turtle a [
  let list1 map [first ?] suppliers
  let p position supplier0 list1
  if item p supplier_score + b >= 0
  [set supplier_score replace-item p supplier_score (item p supplier_score + b)]
 ]
end

to update_plots
  set-current-plot "Daily Stock"
  let s []
  ;Customers
  set-current-plot-pen "Customers"
  plot sum([stock] of Customers)
  ;Retailers
  set-current-plot-pen "Retailers"
  plot sum([stock] of retailers)
  set s lput(sum([stock] of retailers)) s
  ;Distributors
  set-current-plot-pen "Distributors"
  plot sum([stock] of distributors)
  set s lput(sum([stock] of distributors)) s
  ;Factories
  set-current-plot-pen "Factories"
  plot sum([stock] of Factories)
  set s lput(sum([stock] of Factories)) s
  ;set-plot-y-range 0 max(s)
end

There are 2 versions of this model.

Uploaded by When Description Download
Alvaro Gil over 11 years ago Updated file V.5.0 Download this version
Alvaro Gil over 12 years ago Initial upload Download this version

Attached files

File Type Description Last updated
Jama-1.0.2.jar extension jama over 11 years ago, by Alvaro Gil Download
matrix.jar extension Matrix_jar over 11 years ago, by Alvaro Gil Download
Supply Chain.png preview Preview over 11 years ago, by Alvaro Gil Download
table.jar extension table extention over 11 years ago, by Alvaro Gil Download

This model does not have any ancestors.

This model does not have any descendants.
