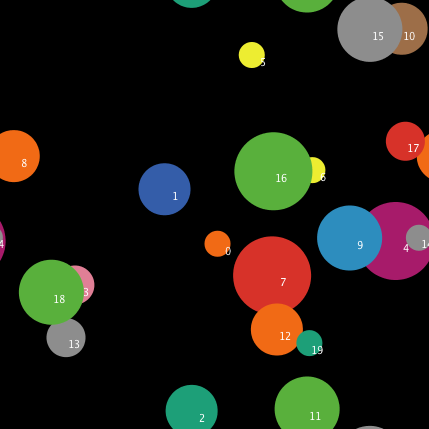

Label Position Example

breed [circles circle]
breed [banners banner]

to setup
  clear-all
  set-default-shape circles "circle"
  create-circles 20 [
    setxy random-xcor random-ycor
    set size 2 + random 5
    attach-banner who
  ]
  reset-ticks
end

to attach-banner [x]  ;; circle procedure
  hatch-banners 1 [
    set size 0
    set label x
    create-link-from myself [
      tie
      hide-link
    ]
  ]
end

to reposition  ;; banner procedure
  move-to one-of in-link-neighbors
  set heading banner-angle
  fd banner-distance
end

to go
  ask circles [ fd 0.01 ]
  ask banners [ reposition ]
  tick
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
